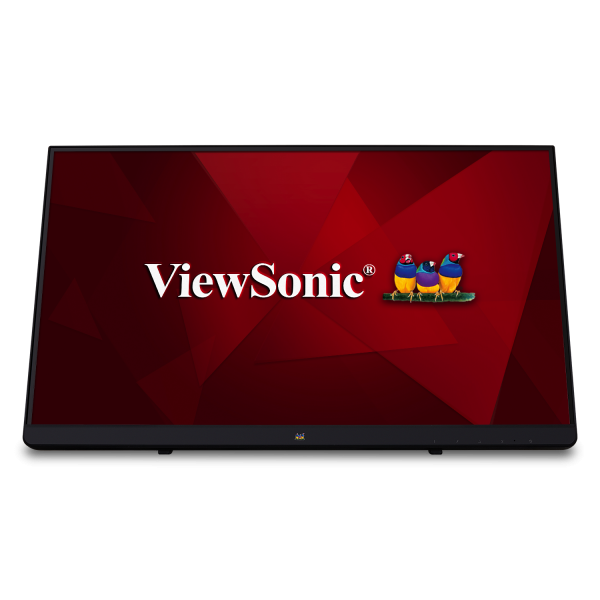

ViewSonic TD2230 22 Touch Display

Home
ViewSonic TD2230 22 Touch Display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: TD2230

UPC: 0766907842418

MFG Part: TD2230

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

SuperClear ® IPS Panel Technology

Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS...

10-point Multi-touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a h...

Frameless Design

This monitor features a frameless edge-to-edge screen that delivers an immersive viewing experience. With its sleek, ...

Versatile Connectivity

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

Durable, Scratch-resistant Screen

This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection...

Display Size (in.) 22

Viewable Area (in.) 21.5

Panel Type IPS

Resolution 1920 x 1080

Static Contrast Ratio 1,000:1

Dynamic Contrast Ratio 50,000,000:1

Light Source LED

Brightness 250 cd/m2

Colors 16.7M

Response Time (Typical GTG) 14ms

Viewing Angles 178º horizontal, 178º vertical

Backlight Life (Hours) 30,000

Panel Surface Anti-glare, Hard coating 7H

PC Resolution (max) Up to 1920x1080 non-interlaced

Mac® Resolution (max) Up to 1920x1080

USB 3.0 Type A 2

USB 3.0 Type B 1

3.5mm Audio In 1

3.5mm Audio Out 1

HDMI In 1

VGA 1

Display Port 1

Power in DC 19V/2.37A

Touch Technology Capacitive

Touch Points 10-Point Touch

Internal Speakers 3W (x2)

Eco Mode (Conserve) 16W

Eco Mode (optimized) 18W

Consumption (typical) 25W

Consumption (max) 28W

Voltage AC 100-240V (universal), 50-60Hz

Physical Controls 1, 2, Down, Up, Power

On Screen Display Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)

Temperature 32-104º F (0 - 40º C)

Humidity (non-condensing) 20-90%

VESA Compatible 100 x 100 mm

Frequency Horizontal 24~82kHz

Frequency Vertical 50~76Hz

Analog Sync Separate Sync, Composite Sync, Sync on Green, TMDS, PCI-E

Tilt (Forward/Back) 20º~70º, lay flat

Net (lbs) 7.9

Net Without Stand (lbs) 7.9

Gross (lbs) 10.4

Net (kg) 3.6

Net Without Stand (kg) 3.6

Gross (kg) 4.7

Packaging (in.) 21.7 x 14.6 x 4.5

Physical (in.) 19.3 x 11.8 x 5.1

Physical Without Stand (in.) 19.3 x 11.8 x 1.9

Packaging (mm) 550 x 371 x 114

Physical (mm) 490.3 x 298.8 x 129.7

Physical Without Stand (mm) 490.3 x 298.8 x 47.3

Regulations cULus, FCC-B w/ICES003, Enery Star 7.0, DOE EPEAT, UL-MX-CoC, Mexico Energy

PACKAGE CONTENTS TD2230 monitor, Power cable, Power adapter, HDMI cable, USB 3.0 cable, Audio cable, Quick Start Guide, ViewSonic Wizard CD

Recycle/Disposal Please dispose of in accordance with local, state or federal laws.

Warranty Three-year limited warranty on parts, labor and backlight
