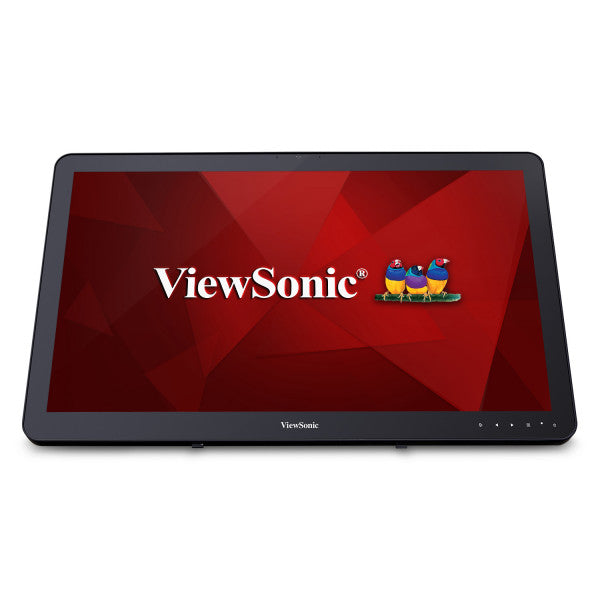

ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display
Viewsonic

ViewSonic 24” (23.6” viewable) Full HD 10-Point Touch Display

Call for price
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: TD2430

UPC: 0766907846911

MFG Part: TD2430

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

10-point Multi-touch

10-point Multi-touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a h...

Read More
SuperClear ® MVA Panel Technology

SuperClear ® MVA Panel Technology

Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA...

Read More
Frameless Design

Frameless Design

This monitor features a frameless edge-to-edge screen that delivers an immersive viewing experience. With its sleek, ...

Read More
Versatile Connectivity

Versatile Connectivity

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

Durable, Scratch-resistant Screen

Durable, Scratch-resistant Screen

This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection...

Read More

Technical Specifications

Detailed technical information for this product.

Display Size (in.) 24
Viewable Area (in.) 23.6
Resolution 1920 x 1080
Static Contrast Ratio 3,000:1
Dynamic Contrast Ratio 50,000,000:1
Brightness 250 cd/m2
Backlight Life (Hours) 40,000
Response Time (Typical GTG) 25ms
Panel Type MVA
Colors 16.7M
Viewing Angles 178º horizontal, 178º vertical
Light Source LED
Panel Surface 7H Scratch Resistant Surface Hardness
Aspect Ratio 16:9
PC Resolution (max) 1920 x 1080
Touch Technology Projective Capacitive
Touch Points 10-Point Touch
USB 3.0 Type A 2
USB 3.0 Type B 1
VGA 1
HDMI 1.4 In 1
Display Port 1
Internal Speakers 2.5W (x2)
Frequency Horizontal Analog: 24 ~ 82Hz, Digital: 15 ~ 82Hz
Frequency Vertical Analog: 50 ~ 75Hz, Digital: 24 ~ 75Hz
Analog Sync Separate Sync / Composite Sync / Sync on Green, TMDS, PCI-E
Eco Mode (Conserve) 19W
Eco Mode (optimized) 22W
Consumption (typical) 25W
Consumption (max) 28W
Voltage AC 100-240V (universal), 50-60Hz
Stand-by 0.5W
Physical Controls 1, 2, Up, Down, Power
On Screen Display Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Temperature 32-104º F (0 - 40º C)
Humidity (non-condensing) 20-90%
Tilt (Forward/Back) 20º - 53º, 90º (Flat)
Kensington Lock Slot 1
VESA Compatible 100 x 100 mm
Gross (kg) 7.1
Net Without Stand (kg) 5.5
Net (lbs) 12.2
Gross (lbs) 15.6
Packaging (mm) 643 x 435 x 140
Physical (mm) 573 x 353 x 47
Packaging (in.) 25.3 x 17.1 x 5.5
Physical (in.) 22.6 x 13.9 x 1.9
Regulations cTUVus, FCC-B w/ ICES003, DOE Energy Star 7.0, DOE EPEAT, TUV-MX-CoC, Mexico Energy, NRCan
PACKAGE CONTENTS LCD Display, AC/DC Adapter, Power Cable, HDMI Cable, USB3.0 Upstream Cable , Audio Cable , Quick Start Guide, ViewSonic Wizard CD-ROM
Warranty Three-year limited warranty on parts, labor and backlight
Recycle/Disposal Please dispose of in accordance with local, state or federal laws.
