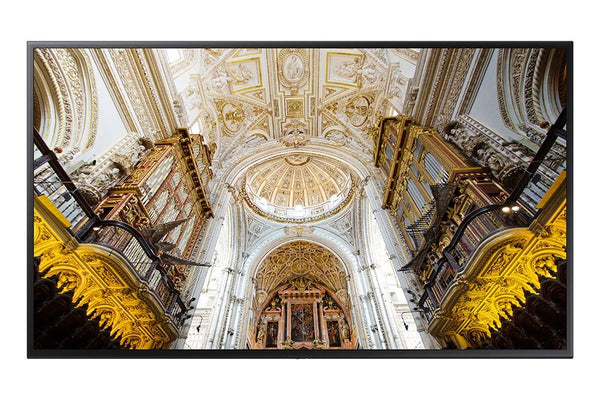

Samsung QM55N QM-N series 4k professional display

Home
Samsung QM55N QM-N series 4k professional display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: QM55N

UPC: 887276279206

MFG Part: QM55N

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Deliver Clear Messaging that Resonates

Whether for a retailer promoting new sales or a transportation hub keeping travelers on schedule, clear information d...

Share Intelligent, High-Quality Content

The QMN Series displays leverage Samsung’s Intelligent Picture Quality technology to elevate content delivery in any ...

Streamline Operational Efficiency

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performa...

Empower Secure and Remote Collaboration

Samsung’s KNOX platform provides rigid three-layer protection while also securing and controlling USB and user networ...

Maintain Continuous Display Performance

Beyond security and content management, QMN Series users can trust the displays’ remote management for fast, efficien...

Enjoy Convenient Display Management

The QMN Series’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. Each dis...

Shield Content From Outside Interference

The QMN Series’ durable, IP5x-validated design ensures continuous, glare-free content delivery regardless of environm...

Accelerate Multi-Screen Content Delivery

For added flexibility, the QMN Series offers users HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a ...

2018 QMN Datasheet

Share clear messaging that resonates through intelligent picture quality

Samsung Smart Signage Platform Catalog

An all-in-one digital signage platform powered by Tizen

2019 Samsung Sports Display Solutions

Creating a connected and immersive experience for spectators

2018 Samsung DOOH display solutions

Discovering new opportunities for advertisement through state-of-the-art-technology

2018 Samsung Large-sized Display Solutions

Delivering stunning content through a large-sized impactful digital display

2018 Samsung Airport Display Solutions

Providing information to passengers through state-of-the art technology

QMN, QBN Product Environmental Information

Diagonal Size 55"

Type New Edge

Resolution 3840*2160 (4K UHD)

Pixel Pitch(mm) 0.315 x 0.315

Active Display Area(mm) 1209.6(H) x 680.4(V)

Brightness(Typ.) 500 nit

Contrast Ratio 4000:1

Viewing Angle(H/V) 178/178

Response Time(G-to-G) 8ms

Display Colors 16.7M

Color Gamut 72%

Operation Hour 24/7

Haze 25%

Dynamic C/R MEGA

H-Scanning Frequency 30 ~ 81kHZ

V-Scanning Frequency 48 ~ 75HZ

Maximum Pixel Frequency 594MHz

Speaker Type Built in Speaker(10W + 10W)

Input / RGB DVI-D, Display Port 1.2 (1)

Input / Video HDMI 2.0 (2)

Input / HDCP HDCP2.2

Input / Audio Stereo mini Jack, DVI, HDMI

Input / USB USB 2.0 x 2

Output / RGB HDMI 2.0 (Loop-out)

Output / Audio Stereo mini Jack

External Control RS232C(in/out) thru stereo jack, RJ45

External Sensor IR

Type Internal

Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption / Max[W/h] 143

Power Consumption / Typical[W/h] 96

Power Consumption / Rating[W/h] 130

Power Consumption / BTU(Max) 487.6

Power Consumption / Sleep mode 0.5

Dimension (mm) / Set 1238.6 X 714.2 X 59.0

Dimension (mm) / Package 1346 X 852 X 158

Weight (kg) / Set 17.4

Weight (kg) / Package 23

VESA Mount (mm) 200 X 200

Stand Type Foot Stand (Optional)

Bezel Width (mm) 13.5(top,side), 17.7(bottom)

Operating Temperature 0 ℃ ~ 40 ℃

Humidity 10 % ~ 80 %

Key Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player / Processor Cortex A72 1.7GHz Quad-Core CPU

Internal Player / On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Internal Player / Clock Speed 1.7GHz

Internal Player / Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit

Graphics Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports USB 2.0

Operating System Tizen 4.0 (VDLinux)

Safety 60950-1

EMC Class A

Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional / Stand STN-L4955H

Optional / Mount WMN4070SE

Optional / Specialty TBD
