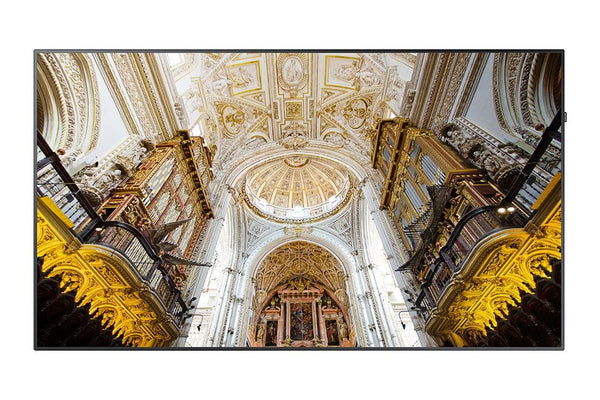

Samsung QB98R QB-R series 4K professional display

Home
Samsung QB98R QB-R series 4K professional display

Request a Quantity Discount

Order within 3h 24m 12s for shipment tomorrow

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: QB98R

UPC: 887276340227

MFG Part: QB98R

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Time to upscale your display

Samsung’s new QB98R displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent U...

Incredible 4K picture quality

Samsung’s new QB98R provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quali...

Intelligent UHD upscaling

Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver ...

Perfect view with non-glare display

The QB98R features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing...

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy eas...

Empower Secure and Remote Collaboration

Samsung’s KNOX platform provides rigid three-layer protection while also securing and controlling USB and user networ...

Maintain Continuous Display Performance

Beyond security and content management, QB98R users can trust the displays’ remote management for fast, efficient iss...

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesse...

Diagonal Size 98"

Type Edge LED BLU

Resolution 3840*2160 (4K UHD)

Pixel Pitch(mm) 0.562 x 0.562 (mm)

Active Display Area(mm) 2158.848(H) x 1214.352(V)

Brightness(Typ.) 350 nit

Contrast Ratio 4000:1

Viewing Angle(H/V) 178/178

Response Time(G-to-G) 6ms(Typ.)

Display Colors 16.7M(True Display)1.07B(Ditherd 10bit)

Color Gamut 72%

Operation Hour 24/7

Haze 25%

Dynamic C/R Mega

H-Scanning Frequency 30 ~ 81kHZ

V-Scanning Frequency 48 ~ 75HZ

Maximum Pixel Frequency 594MHz

Speaker Type Built in Speaker(10W + 10W)

Input / RGB DVI-D, Display Port 1.2 (1)

Input / Video HDMI 2.0 (2)

Input / HDCP HDCP2.2

Input / Audio Stereo mini Jack, DVI, HDMI

Input / USB USB 2.0 x 2

Output / RGB HDMI 2.0 (Loop-out)

Output / Audio Stereo mini Jack

External Control RS232C(in/out) thru stereo jack, RJ45

External Sensor IR

Type Internal

Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption / Max[W/h] 528

Power Consumption / Typical[W/h] 372

Power Consumption / BTU(Max) 480

Power Consumption / Sleep mode 1800.5

Power Consumption / Off mode 0.5

Dimension (mm) / Set 2194.2 x 1249.8 x 71.6 (w/o handle) 2194.2 x 1249.8 x 75.3 (w/ handle)

Dimension (mm) / Package 2500 x 1618 x 815

Weight (kg) / Set 77.1

Weight (kg) / Package 149.4

VESA Mount (mm) 900x600

Stand Type Foot Stand (Optional)

Bezel Width (mm) 15.2mm(U/L/R), 15.2mm(B)

Operating Temperature 0 ℃ ~ 40 ℃

Humidity 10 % ~ 80 %

Key Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player / Processor Coretex A72 1.7GHz Quad-Core CPU

Internal Player / On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Internal Player / Clock Speed 1.7GHz

Internal Player / Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit

Graphics Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports USB 2.0

Operating System Tizen 4.0 (VDLinux)

Safety 60950-1

EMC Class A

Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional / Mount WMN9500SD
