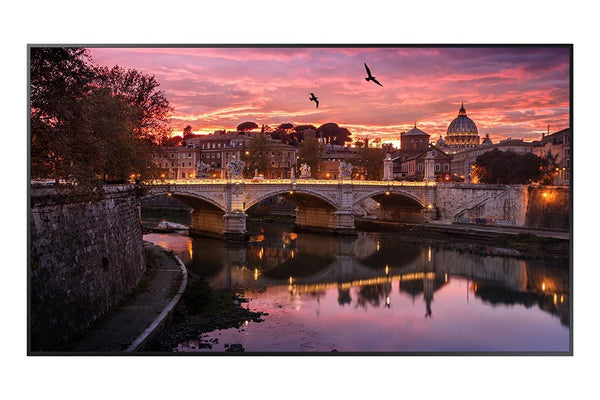

Samsung QB75R | QB-R Series 75" 4K Ultra-HD Commercial Display

Home
Samsung QB75R | QB-R Series 75" 4K Ultra-HD Commercial Display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: QB75R

UPC: 887276328577

MFG Part: QB75R

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Time to upscale your display

Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intellig...

Incredible 4K picture quality

Samsung’s new QBR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture ...

Intelligent UHD upscaling

Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver ...

Dynamic Crystal Color

The QBR series features Dynamic Crystal Color, using 10 bit processing for flawless color expression, allowing viewer...

Slim and symmetrical design

The QBR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. ...

Clean cable management

With QBR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean a...

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy eas...

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesse...

SMART Signage QBR Datasheet

Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.

Samsung showcases innovative display solutions optimized for broadcast applications at NAB 2019

Samsung provides the broadcast industry with display technologies that deliver crisp resolution and life-like visuals

Samsung showcases award-winning display solutions at Digital Signage Expo 2019

Samsung delivers enhanced workplace environments with dynamic solutions including Dual-Sided High-Bright Outdoor Sign...

Diagonal Size 75"

Type Edge LED BLU

Resolution 3840*2160 (4K UHD)

Pixel Pitch(mm) 0.42975 x 0.42975

Active Display Area(mm) 1650.24 (H) x 928.26 (V)

Brightness(Typ.) 350 nit

Contrast Ratio 4000:1

Viewing Angle(H/V) 178/178

Response Time(G-to-G) 8ms(Typ.)

Display Colors 16.7M(True Display) 1.07B(Ditherd 10bit)

Color Gamut 92% (DCI-P3, CIE 1976)

Operation Hour 16/7

Haze 2%

Dynamic C/R MEGA

H-Scanning Frequency 30 ~ 81kHZ

V-Scanning Frequency 48 ~ 75HZ

Maximum Pixel Frequency 594MHz

Speaker Type Built in Speaker(10W + 10W)

Input / RGB DVI-D

Input / Video HDMI 2.0 (2)

Input / HDCP HDCP 2.2

Input / Audio Stereo Mini Jack, DVI/HDMI/Audio(Common)

Input / USB USB 2.0 x 2

Output / Audio Stereo Mini Jack

External Control RS232C(in/out) thru stereo jack, RJ45

External Sensor IR

Type Internal

Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption / Max[W/h] 231

Power Consumption / Typical[W/h] 150

Power Consumption / Rating[W/h] 210

Power Consumption / BTU(Max) 787.7

Power Consumption / Sleep mode 0.5

Dimension (mm) / Set 1681.1 x 960.1 x 49.7

Dimension (mm) / Package 1871 x 1127 x 223

Weight (kg) / Set 38.3

Weight (kg) / Package 49

VESA Mount (mm) 400 X 400

Stand Type No

Bezel Width (mm) 11.5mm(U/L/R), 12.5mm(B)

Operating Temperature 0 ℃ ~ 40 ℃

Humidity 10 % ~ 80 %

Key Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player / Processor Coretex A72 1.7GHz Quad-Core CPU

Internal Player / On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Internal Player / Clock Speed 1.7GHz

Internal Player / Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit

Graphics Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports USB 2.0

Operating System Tizen 4.0 (VDLinux)

Safety 60950-1

EMC Class B

Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional / Stand No

Optional / Mount WMN4277SE WMN6575SE

Optional / Specialty CML450K
