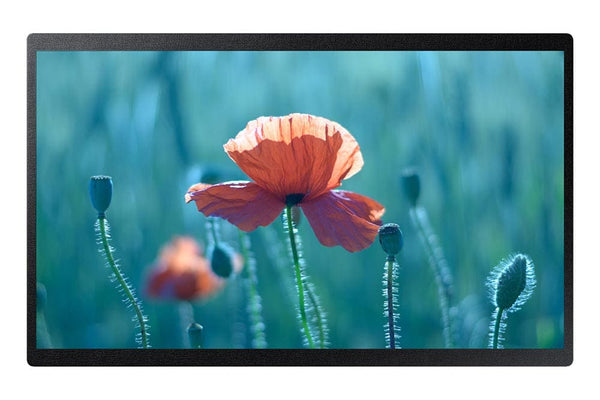

Samsung QB24R - 24 inch professional display

Home
Samsung QB24R - 24 inch professional display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: QB24R

UPC: 887276501994

MFG Part: QB24R

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Enhanced communication in a compact display

Samsung's QB24R small display enables personalized and more impactful communication through its compact and versatile...

Crisp and visible content

Samsung’s QB24R is enhanced by a non-glare panel which always delivers clear images and text regardless of any ambien...

Slim design

The compact and slim design of the QB24R allows for efficient space utilization, even in compact locations. A sleek r...

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB24R allows efficient and seamless playback without any ex...

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the applicati...

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control. Wh...

Safe operation, reliable performance

The QB24R is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards f...

Diagonal Size 24"

Type ADS

Resolution 1920*1080 (Full HD)

Pixel Pitch(mm) 0.2745 x 0.2745

Active Display Area(mm) 527.04 (H) x 296.46 (V)

Brightness(Typ.) 250 nit

Contrast Ratio 1000:1

Viewing Angle(H/V) 178/178

Response Time(G-to-G) 14ms(Typ.)

Display Colors 16.7 M (real 6bit, dither 8bit)

Color Gamut 72%

Operation Hour 16/7

Haze 25%

Dynamic C/R MEGA

H-Scanning Frequency 56 ~ 84.5kHz

V-Scanning Frequency 48 ~ 75HZ

Maximum Pixel Frequency 594MHz

Speaker Type Built in Speaker(5W)

Input / Video HDMI 1.4 (1)

Input / HDCP HDCP 2.2

Input / USB USB 2.0 x 1

Output / Audio Stereo Mini Jack

External Control RS232C(in) thru stereo jack, RJ45

Type Internal

Power Supply AC 100 - 240 V, 50/60 Hz

Power Consumption / Max[W/h] 38.5

Power Consumption / Typical[W/h] 25.0

Power Consumption / Rating[W/h] 35.0

Power Consumption / BTU(Max) 131.3

Power Consumption / Sleep mode 0.5

Dimension (mm) / Set 547.9 x 334.4 x 31.8

Dimension (mm) / Package 620 x 419 x 122

Weight (kg) / Set 3.0

Weight (kg) / Package 4.1

VESA Mount (mm) 100 X 100

Bezel Width (mm) 17.9mm(U/B), 9.4mm(L/R)

Operating Temperature 0 ℃ ~ 40 ℃

Humidity 10 % ~ 80.0 %

Key Features Small Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(5W 1ch), IP5x Rating, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player / Processor Cortex A72 1.7GHz Quad-Core CPU

Internal Player / On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Internal Player / Clock Speed 1.7GHz

Internal Player / Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit

Graphics Graphic resolution : 1920x1080 Output resolution : 1920x1080 (Scale up from graphic processing result.)

Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports USB 2.0

Operating System Tizen 4.0 (VDLinux)

Safety 60950-1

EMC Class B

Security 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
