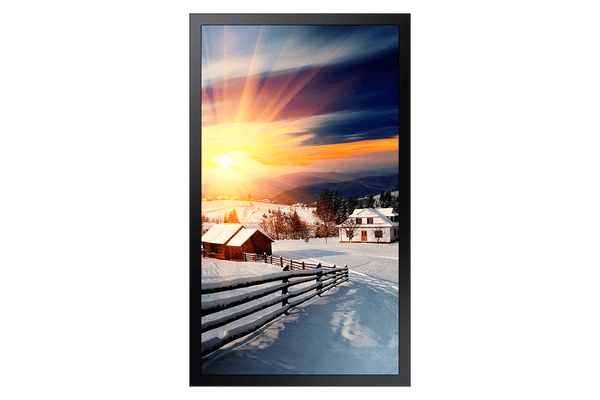

Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display
Samsung

Samsung OH85N-D - 85 inch single sided Outdoor IP56 high bright display

Call for price
Deliver bright, creative messages on robust outdoor signage.85" large-sized digital displays optimized for outdoor usageExcellent visibility under direct sunlight through 3,000nit high brightnessOptimal durability with IK10-rated Magic Protection Glass and IP56-rated displaysAdvanced content management via MagicINFO S6 Player powered by...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: OH85N-S

UPC: 8806090102844

MFG Part: OH85N-S

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Large displays optimized for DOOH

Large displays optimized for DOOH

The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery fo...

Read More
Unsurpassable visibility day and night

Unsurpassable visibility day and night

The OHN series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. Wit...

Read More
Easy-to-use management software

Easy-to-use management software

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall perform...

Read More
Built strong to endure impacts

Built strong to endure impacts

The OHN series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10-...

Read More
Resistant to outdoor elements

Resistant to outdoor elements

The OHN series is verified to perform in outdoor settings. IP56-rated protection ensures the OHN series will withstan...

Read More

Technical Specifications

Detailed technical information for this product.

Diagonal Size 85"
Type 60Hz D-LED Local Dim. BLU
Resolution 3840*2160 (4K UHD)
Pixel Pitch(mm) 0.488 x 0.488
Active Display Area(mm) 1872(H) x 1053(V)
Brightness(Typ.) 3000 nit
Contrast Ratio 3000:1
Viewing Angle(H/V) 178/178
Response Time(G-to-G) 8ms
Display Colors 8 bit - 16.7M bit
Color Gamut 72%
Operation Hour 24/7
Haze 0%
Dynamic C/R 100,000:1
H-Scanning Frequency 15 ~ 135KHz (HDMI), 30 ~ 135KHz (DP)
V-Scanning Frequency 24 ~ 75Hz (HDMI), 30 ~ 75Hz (DP)
Maximum Pixel Frequency 594MHz (HDMI), 533.25MHz (DP)
Input / RGB DP 1.2
Input / Video HDMI 2.0 (2)
Input / HDCP HDCP 2.2
Input / USB USB 2.0 (1)
Output / Audio Stereo Mini Jack
External Control RS232C (In), RJ45 (In)
Type Internal
Power Supply AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption / Max[W/h] 1,800
Power Consumption / Typical[W/h] W/W(EU) 600 US/KOR/Etc. 1,010 ※ Etc: CHINA, TAIWAN, BRA
Power Consumption / BTU(Max) 6,138
Power Consumption / Sleep mode less than 0.5W
Power Consumption / Off mode less than 0.5W
Dimension (mm) / Set 2004 x 1185 x 120 mm
Dimension (mm) / Package 2175 x 1383 x 495 mm
Weight (kg) / Set 163kg
Weight (kg) / Package 211kg
Protection Glass Yes (5T Tempered Glass)
Bezel Width (mm) 62 / 62 / 62 / 62 mm
Operating Temperature -30  ℃  ~   50   ℃
Humidity 10  %  ~   100   %   (Non-Condensing)
Key Features Slim High Brightness, IP56 Outdoor, Built-in MagicInfo Player S6, SSSP6
Special Features IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)
Internal Player / Processor Cortex A72 1.7GHz Quad-Core CPU
Internal Player / On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Internal Player / Clock Speed 1.7GHz
Internal Player / Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit
Graphics Graphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES
Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG
IO Ports USB 2.0
Operating System Tizen 4.0 (VDLinux)
Safety CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
EMC FCC (USA) : Part 15, Subpart B Class ​B CE (Europe) : EN55032:2015 Class B, EN55035:2017
Included Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries
