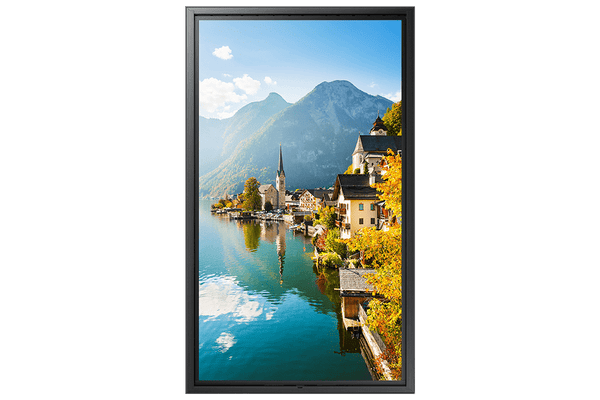

Samsung OH85N-D - 85 inch Dual sided Outdoor IP56 high bright display

Home
Samsung OH85N-D - 85 inch Dual sided Outdoor IP56 high bright display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: OH85N-D

UPC: 8806090001963

MFG Part: OH85N-D

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

A double-sided screen with slim depth

The OHN-D series has two screens to highlight brilliant content and graphics on each side. With 3,000nit brightness o...

Unsurpassable visibility day and night

The OHN-D series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. W...

Easy-to-use management software

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performa...

Resistant to outdoor elements

The OHN-D series is verified to perform in outdoor setting. IP56-rated protection* ensures the OHN series will that w...

Easy setup and maintenance

Users can easily access the inside of the OHN-D series for repair or maintenance. Simply lift the set for quick entra...

Diagonal Size 85"

Type 60Hz D-LED Local Dim. BLU

Resolution 3840*2160 (4K UHD)

Pixel Pitch(mm) 0.488 x 0.488

Active Display Area(mm) 1872(H) x 1053(V)

Brightness(Typ.) 3,300 (w/o glass) nit

Contrast Ratio 3000:1

Viewing Angle(H/V) 178/178

Response Time(G-to-G) 8ms

Display Colors 8 bit - 16.7 Mbit

Color Gamut 72%

Haze 0%

Dynamic C/R 100,000:1

H-Scanning Frequency 15 ~ 135KHz (HDMI), 30 ~ 135KHz (DP)

V-Scanning Frequency 24 ~ 75Hz (HDMI), 30 ~ 75Hz (DP)

Maximum Pixel Frequency 594MHz (HDMI), 533.25MHz (DP)

Input / RGB DP 1.2 (2)

Input / Video HDMI 2.0 (4)

Input / HDCP HDCP 2.2

Input / USB USB 2.0 (2)

Output / Audio Stereo Mini Jack

External Control RS232C (In), RJ45 (In)

Type Internal

Power Supply AC 100 - 240 V (+/- 10 %), 50/60 Hz

Power Consumption / Max[W/h] 3,600 (1,800x2)

Power Consumption / Typical[W/h] W/W(EU) 1200 (600x2)US/KOR/Etc. 2,020 (1,010x2)※ Etc: CHINA, TAIWAN, BRA

Power Consumption / BTU(Max) 12276 (6,138x2)

Power Consumption / Sleep mode less than 1W

Power Consumption / Off mode less than 1W

Dimension (mm) / Set 1,193 x 2,012 x 228 mm

Dimension (mm) / Package 1,510 x 2,284 x 577 mm (Without Pallet)

Weight (kg) / Set 255kg

Weight (kg) / Package 310.6kg

Operating Temperature -30 ℃ ~ 50 ℃

Humidity 10 % ~ 100 % (Non-Condensing)

Key Features Dual Display, High Brightness, IP56 Outdoor,Built-in MagicInfo Player S6, SSSP6

Special Features IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in any direction, Portrait Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)

Internal Player / Processor Cortex A72 1.7GHz Quad-Core CPU

Internal Player / On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Internal Player / Clock Speed 1.7GHz

Internal Player / Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit

Graphics Graphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES

Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG

IO Ports USB 2.0

Operating System Tizen 4.0 (VDLinux)

Safety CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1

EMC FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

IP Rating IP56

Included Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries
