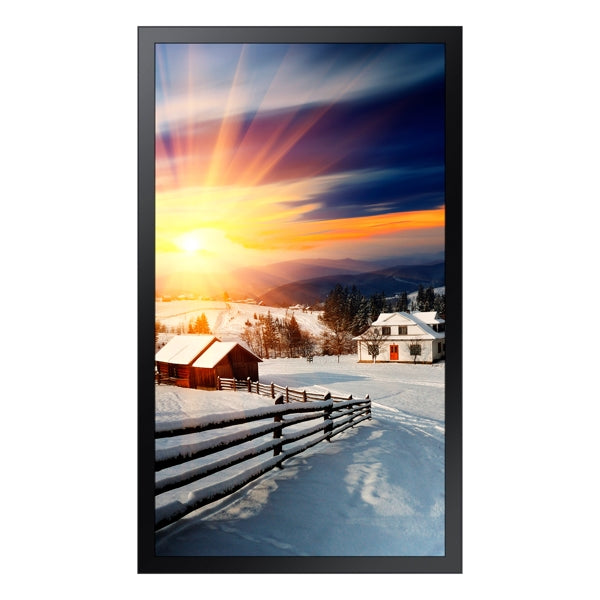

Samsung OH85N - 85 inch outdoor IP56 high bright professional display

Home
Samsung OH85N - 85 inch outdoor IP56 high bright professional display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: OH85N

UPC: 8806090001970

MFG Part: OH85N

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Optimized Outdoor Visibility to Deliver Your Message

At 3,300 nits, this high brightness display delivers excellent legibility and visibility, even in bright sunlight. Wi...

IP56 Certification to Withstand the Elements

The OHN Series is true all-weather, IP56-certified outdoor signage, designed specifically to withstand the elements ...

24/7 Commercial Reliability

Built to handle 24/7 continuous operation, you’ll be able to deliver impactful messaging to your audience around the ...

Protected from Vandalism

Advanced protection against external impacts such as vandalism is provided through the tempered Magic Glass featuring...

Built to Handle Extreme Temperatures

An innovative patent-pending self-cooling system with a heat exchanger equips this display to handle a wide operating...

Embedded Media Player

The embedded MagicInfo Player 6.0, backed by the powerful Tizen operating system, allows for easy content management ...

Samsung Circular Polarizing Technology

Samsung’s circular polarizing technology allows content to be easily viewed even while wearing polarized sunglasses.

High Brightness Displays for Outdoor Communications

Find out how to optimize outdoor communications with state-of-the-art display technology.

Embrace the Power of Outdoor Signage

Examines outdoor digital signage use cases and how high brightness technology can provide new sales and marketing opp...

Beer Park by Budweiser—Outdoor Displays

Learn how this 10,000-square-foot open-air venue in Las Vegas is setting a new standard for guest entertainment at ou...

Series Name OHN Series

Screen Size 85"

Panel Technology 60Hz D-LED Local Dim. BLU

Resolution 3840 x 2160

Aspect Ratio 16:9

Brightness 3,300 nits (w/o glass)

Contrast Ratio (Typical) 3000:1

Contrast Ratio (Dynamic) 100,000:1

Viewing Angle (H/V) 178/178

Response Time 8ms

Operation Hours 24/7

Input RGB: DP 1.2 VIDEO: HDMI 2.0 (2) HDCP: HDCP 2.2 USB: USB 2.0 (1)

Output AUDIO: Stereo Mini Jack

External Control RS232C (In), RJ45 (In)

Power Supply AC 100 - 240 V (+/- 10 %), 50/60 Hz

Power Consumption (Typical/Max) Typical: 1,010 W/h Max: 1,800 W/h

Power Consumption (Standby) less than 0.5W

Operating Temperature -30℃~ 50℃

Operating Humidity 10% ~ 80%, non-condensing

IP Rating IP56

Key Slim High Brightness, IP56 Outdoor, Built-in MagicInfo Player S6, SSSP6

Special IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in Any Direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery (80hrs Clock Keeping)

SMART Signage Platform Yes

Processor Coretex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Clock Speed 1.7GHz

Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit

Graphics Graphic Resolution : 1920 x 1080 Output Resolution : Up to 3840 x 2160 (Scale Up From Graphic Processing Result) - Supports OpenGL ES

Storage 8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD), MPEG

IO Ports USB 2.0

Operating System Tizen 4.0 (VDLinux)

Without Stand (W x H x D) 2,004 x 1,185 x 120 mm

Packaging (W x H x D) 2,175 x 1,383 x 495 mm (Without Pallet)

Product Weight 137kg

Package Weight 185kg

Included in Box Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries
