Samsung

OH-F Series 55"

Call for price

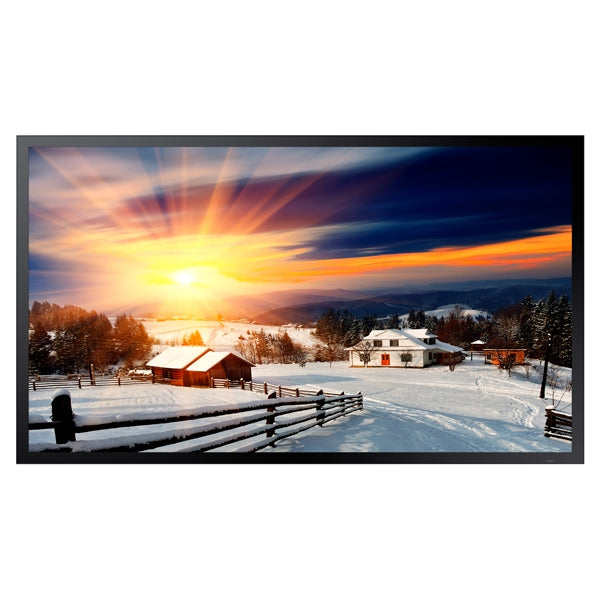

Samsung's OH-F Series are completely integrated, self-contained outdoor displays that are certified to withstand the elements and provide excellent visibility around the clock, in any light. They are fully equipped for outdoor placements and feature an innovative cooling system so...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: LH55OHFPKBC/GO

MFG Part: LH55OHFPKBC/GO

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Standalone Outdoor Signage

Standalone Outdoor Signage

The OH-F Series delivers a standalone outdoor signage solution that is fully equipped for outdoor placements. Featuri...

Read More
Optimized Visibility for the Outdoors

Optimized Visibility for the Outdoors

At 2,500 nits, plus a 5,000:1 contrast ratio, this display delivers high brightness for excellent legibility and visi...

Read More
IP56 Certification to Withstand the Elements

IP56 Certification to Withstand the Elements

The OH-F Series is true all-weather, IP56-certified outdoor signage, designed specifically to withstand the elements ...

Read More
24/7 Commercial Reliability

24/7 Commercial Reliability

Built to handle 24/7 continuous operation, you’ll be able to deliver impactful messaging to your audience around the ...

Read More
Built to Handle Extreme Temperatures

Built to Handle Extreme Temperatures

An innovative self-cooling solution, plus the ability to heat up, equips this display to handle a wide operating temp...

Read More
Protected from Vandalism

Protected from Vandalism

Advanced protection against external impacts such as vandalism is provided through the 5mm tempered Magic Glass featu...

Read More
Simple Content Management

Simple Content Management

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU, the integrated media player delivers a simple cont...

Read More
All-in-One Connectivity

All-in-One Connectivity

An embedded HDBaseT receiver enables all-in-one connectivity between HD video sources and remote displays through a s...

Read More
Lower Your Total Cost of Ownership (TCO)

Lower Your Total Cost of Ownership (TCO)

The embedded network hub and Wi-Fi functionality helps to reduce TCO by eliminating the need for a router when connec...

Read More
Visible with Polarized Sunglasses

Visible with Polarized Sunglasses

A special film treatment is applied to the display to improve visibility of content while wearing polarized sunglasses.

Outdoor Digital Menu Boards (Infographic)

Outdoor Digital Menu Boards (Infographic)

Learn more about the business benefits enabled by outdoor digital menu boards in this abridged version of a Forrester...

Read More
Outdoor Digital Menu Boards

Outdoor Digital Menu Boards

Learn more about the cost savings and business benefits enabled by outdoor digital drive-thru menu displays in this F...

Read More
Embrace the Power of Outdoor Signage

Embrace the Power of Outdoor Signage

Examines outdoor digital signage use cases and how high brightness technology can provide new sales and marketing opp...

Read More

Technical Specifications

Detailed technical information for this product.

Series Name OH55F
Screen Size 55"
Panel Technology 120Hz D-LED Local Dim. BLU
Resolution 1920x1080
Aspect Ratio 16:9
Brightness 2,500 cd/m2
Contrast Ratio (Typical) 5,000:1
Viewing Angle (H/V) 178/178
Response Time 6ms
Input VIDEO: HDMI 1.4 (2), HDBaseT (LAN Common) HDCP: HDCP 2.2 USB: USB 2.0 (1)
Output AUDIO: Stereo Mini Jack
External Control RS232C (In/Out), RJ45(In/Out), HDBaseT
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 510Wh/ 554Wh
Power Consumption (Standby) Less than 0.5W
Special Power-box Integrated, IP56 Certified, WiFi(Back side usage only) Built-in MagicInfo Player S4, SSSP 4.0, IP56 Certified for Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installing, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock
SMART Signage Platform Yes
Media Player Type Processor: Cortex-A12 1.3GHz Quad Core CPU On-Chip Cache Memory: L1 (I/D) : 32KB / 32KB, L2 (Unified) : 1MB Clock Speed: 1.3GHz CPU Quad Main Memory Interface: 2.5GB, 3 channel 96bit DDR3-933 (1866MHz) Graphics: 2D & 3D Graphics Engine (Up to 3840x2160p 32bpp, Supports OpenGL ES) Storage (FDM): 8GB (3.75GB Occupied by O/S, 4.25GB Available) Multimedia: Video Decoder (MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9) Audio DSP (AC3 (DD), MPEG, DTS and etc.) IO Ports: USB 2.0 Operating System: Tizen 2.4 (VDLinux)
24/7 Operation Yes
Wi-Fi Yes
Outdoor Yes
Without Stand (W x H x D) 1260.6 x 731.4 x 85.0 mm
Packaging (W x H x D) 1358 x 845 x 230 mm
Bezel Width 24.9 / 24.9 / 24.9 / 24.9 mm
Product Weight 52.6kg
Package Weight 58.1kg
Included in Box Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Emission Standard FCC (USA) Part 15, Subpart B Class A
Operating Temperature ~30℃ ~ 50℃
Operating Humidity 10~80%
