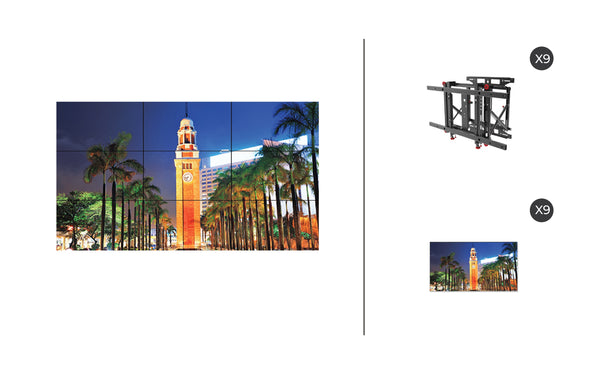

NEC X555UNS + DS-VW775-QR 3x3 Kit | 55" Ultra Narrow Bezel S-IPS Video Wall Display with Peerless Full Service Mount

$34,999.99
Includes: 9 x X555UNS 9 x Peerless DS-VW775-QR The 55” NEC X555UNS utilizes S-IPS panel technology to provide a superior signage solution for building video walls. With excellent off-angle viewing and far less color shift than traditional video wall panels,...
Request a Quantity Discount
Order within 3h 24m 12s for shipment tomorrow
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: X555UNSKIT3x3

UPC: 805736057454

MFG Part: X555UNS

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

55 Ultra Narrow Bezel S-IPS Video Wall Display

55 Ultra Narrow Bezel S-IPS Video Wall Display

The 55 NEC X555UNS utilizes S-IPS panel technology to provide a superior signage solution for building video walls. W...

Read More

Technical Specifications

Detailed technical information for this product.

Panel Technology S-IPS (P-DID)
Viewable Image Size 55"
Native Resolution 1920 x 1080
Pixel Pitch 0.63mm
Backlight Type LED Direct-lit
Pixels Per Inch 47@ native resolution
Brightness (typical) 500cd/m2
Brightness (maximum) 700cd/m2
Contrast Ratio (typical) 1200:1
Response Time(Gray to Gray) 12ms
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 1209.6 x 680.4mm / 47.6 x 26.8 in.
Orientation Landscape/Portrait
Displayable Colors More than 1.07 Billion
Horizontal (Analog/Digital) 15.625 / 15.734 / 31.5-91.1 kHz
Vertical 50.0-85.0 Hz (Analog), 24.0 - 85.0Hz (Digital)
Video Analog RGB 0.7 Vp-p/75 Ohms (Analog), TMDS (Digital)
Sync Separate sync: TTL Level (Positive/Negative) Composite Sync on Green: (0.3Vp-p negative)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Digital DisplayPort, HDMI, DVI-D
Analog VGA 15-pin D-sub
Audio Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control RS-232C, LAN, DDC/CI
Audio Audio Mini-Jack, External Speaker Jack (2), HDMI Audio (through DP Out), DisplayPort Audio
Digital DisplayPort (DisplayPort, HDMI, DVI-D or Option Signals out of this port)
External Control LAN
On 205W
ECO Mode Standby <0.5W
Input Current 4.4A @ 100-120V / 1.6A @ 220-240V
Bezel Width (Left/Right, Top/Bottom) 0.09 in. / 0.05 in., 0.09 in. / 0.05 in. ; 2.3mm / 1.2mm, 2.3mm / 1.2mm
Net (with stand) 47.8 x 28.7 x 15.7 in. / 1213.4 x 728.8 x 400.0mm
Net (without stand) 47.8 x 26.9 x 3.8 in. / 1213.4 x 684.2 x 95.3mm
Shipping 57.4 x 34.6 x 12.6 in. / 1459.0 x 880.0 x 320.0mm
Net (with stand) 69.9 lbs. / 31.7kg (per display)
Net (without stand) 61.5lbs /27.9kg
Shipping 81.6lbs. / 37.0kg
Operating Humidity 20-80%
Operating Altitude 13,780 ft. / 4200m
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
NEC Stand (ST-5220) External Speakers (SP-TF1 or SP-RM1) Any Interface Expansion Card Display Wall Calibrator Kit (KT-LFD-CC) Overframe Bezel Kit (KT-55UN-OF3 - highest dimension in wall is equal to the number of kits necessary
