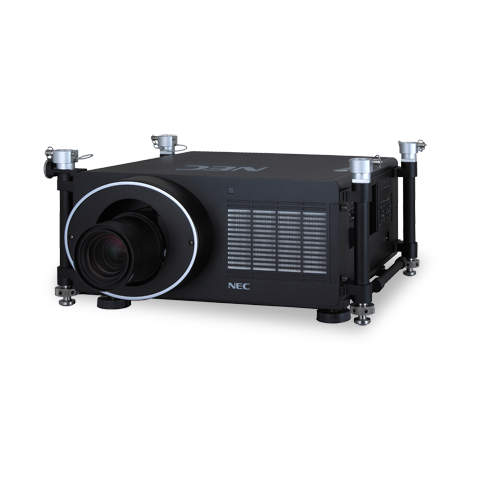

11,000-lumen Professional Installation Projector
The 11,000-lumen NEC PH1000U professional installation projector offers a unique 3-chip DLP system that creates quali...
Read MoreTechnical Specifications
Detailed technical information for this product.
Display Technology
DLP (0.96" DMD)
Light Output(Lumens)
11,000 normal / Eco = approx. 80% of normal mode
Native
WUXGA 1920 x 1200
Maximum
WUXGA 1920 x 1200
Contrast Ratio (up to)
2000:1
Lamp Type
400W AC / 320W eco
Lamp Life (up to)
2000 hours normal / 2500 hours eco
Screen Size (diagonal)
80 to 500 in. / 2 to 12.7m
Throw Ratio
Variable
Projection Distance
1.8 to 243 ft. / 0.55 to 74m
Zoom
Power
Focus
Power
F number, fnumber
Variable
Shift
Power: +50/-40% vertical, +/-20% horizontal
Horizontal (Analog/Digital)
15-108 kHz
Vertical (Analog/Digital)
48-120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
Yes
RGB1(analog)
VGA 15-pin D-sub
RGB2(analog)
VGA 15-pin D-sub
RGB3(analog)
5-BNC
RGB4(digital)
HDMI w/ HDCP
RGB5(digital)
DisplayPort
Video 1
RCA
Video 2
S-Video
Monitor out
VGA 15-pin D-sub
External Control
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity
Separate Sync / Composite Sync / Sync on G
Networking
RJ-45 Monitoring
Power Requirements
100-240V AC, 50/60 Hz
Input Current
10.8A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)
1006W / 810W / 33W / 0.2W
Optional Lenses
NP25FL, NP26ZL, NP27ZL, NP28ZL, NP29ZL
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)
22.7 x 9.3 x 22 in. / 578 x 235 x 558mm
Net Weight
87.1 lbs. / 39.5 kg
Fan Noise
45 dB normal / 39 dB eco
Regulations
USA UL 60950-1, FCC A, Canada C-UL 60950-1
Humidity
20-80% non-condensing
