Built for Commercial Excellence
Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

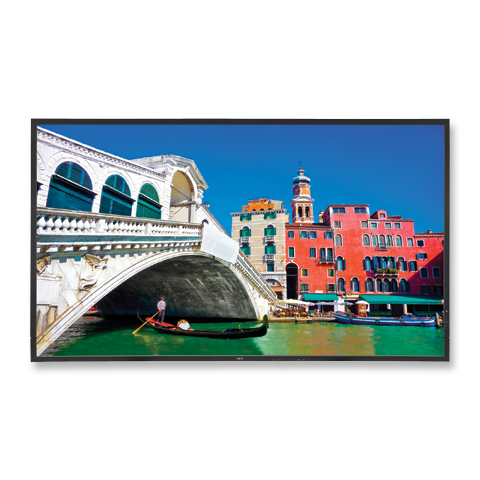

42 High-Performance LED-Backlit Commercial-Grade Display w/ Integrated Speakers
NECs 42 V423 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functi...
Read MoreTechnical Specifications
Detailed technical information for this product.
Panel Technology
S-IPS
Viewable Image Size
42"
Native Resolution
1920 x 1080
Pixel Pitch
0.49mm
Backlight Type
LED Edge-lit
Pixels Per Inch
52@ native resolution
Brightness (typical)
320cd/m2
Brightness (maximum)
450cd/m2
Contrast Ratio (typical)
1300:1
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
36.6x 20.6in. / 930 x 523.3mm
Orientation
Landscape/Portrait
Displayable Colors
More than 16.7 million
Horizontal (Analog/Digital)
31.5-91.1 kHz
Vertical
50-85 Hz
Video
Analog RGB 0.7 Vp-p/75 Ohms
Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes
Digital
DisplayPort, HDMI, DVI-D
Analog
VGA 15-pin D-sub (shared S-Video, Video, Component), BNC Composite
Audio
Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
External Control
RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Audio
Stereo Mini-Jack, External Speaker Jack (2)
Digital
DVI-D
External Control
RS-232C
On
88W
ECO Mode Standby
<0.5W
Bezel Width (Left/Right, Top/Bottom)
0.7 in./0.7 in., 0.7 in./0.7 in. ; 18.3mm/18.3mm, 18.3mm/18.3mm
Net (with stand)
38.3 x 23.7 x 9.4in. / 972.5 x 602.4 x 240.0mm
Net (without stand)
38.3 x 22.3 x 2.7in. / 972.5 x 565.4 x 68.3mm
Shipping
44.9 x 27.7 x 7.4 in. / 1140 x 704 x 187mm
Net (with stand)
39.9 lbs. / 18.1 kg
Net (without stand)
37 lbs. / 16.8 kg
Shipping
44.8 lbs. / 20.3 kg
Operating Humidity
20-80%
Operating Altitude
9843 ft. / 3000m
Storage Humidity
10-90%
Storage Altitude
40,000 ft. / 12,192m\
NEC
Speakers (SP-RM2)
Stand (ST-322)
External Single Board Computer (TNETPC-AF-WH)
OPS with Intel Core i5 (N8000-8830)
OPS with Intel i5, 250GB Hard Drive, W7e (OPS-PCIC-5WH)
OPS with Intel i5, 32GB SSD, W7e (OPS-PCIC-5WS)
OPS with Intel Atom, 160GB Hard Drive, W7e (OPS-PCIA-WH)
OPS with Intel Atom, 32GB SSD, W7e (OPS-PCIA-WS)
OPS with Intel Atom, 160GB Hard Drive, No OS (OPS-PCIA-H)
OPS with Intel Atom, 32GB SSD, No OS (OPS-PCIA-S)
OPS with AMD Dual Core Fusion, 160GB Hard Drive, W7e (OPS-PCAF-WH)
OPS with AMD Dual Core Fusion, 16GB SSD, W7e (OPS-PCAF-WS)
OPS with AMD Dual Core Fusion, 160GB Hard Drive, No OS (OPS-PCAF-H)
OPS with AMD Dual Core Fusion, 16GB SSD, No OS (OPS-PCAF-S)
OPS with AMD Quad Core Fusion, 250GB Hard Drive, Win7 Pro (OPS-PCAFQ-PH)
OPS with AMD Quad Core Fusion, 250GB Hard Drive, W7e (OPS-PCAFQ-WH)
OPS with AMD Quad Core Fusion, 32GB SSD, W7e (OPS-PCAFQ-WS)
OPS with AMD Quad Core Fusion, 250GB Hard Drive, No OS (OPS-PCAFQ-H)
OPS with AMD Quad Core Fusion, 32GB SS, No OS (OPS-PCAFQ-S)
Internal HD-SDI Card (SB-01HC)
Internal 3G-SDI Card (SB-04HC)
Digital IP Tuner (SB-03TM)
Wall Mount Kit (WMK-3257)
Display Wall Calibrator Kit (KT-LFD-CC)
