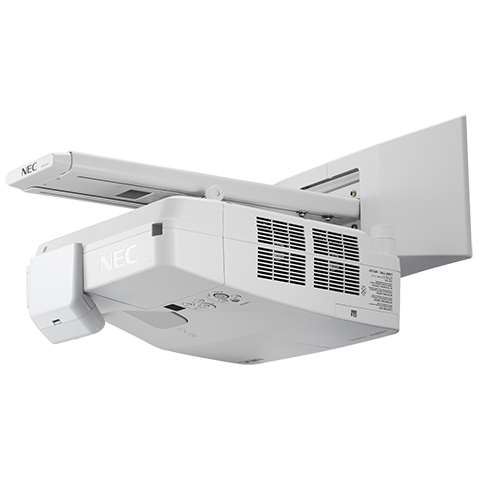

3600-Lumen Interactive Ultra Short Throw Projector w/ Touch Module and Wall Mount
The UM361Xi-TM interactive projector brings collaboration to both classrooms and conference rooms alike. Together wit...
Read MoreTechnical Specifications
Detailed technical information for this product.
Display Technology
0.63" LCD
Light Output(Lumens)
3600
Native
XGA 1024 x 768
Maximum
WUXGA 1920 x 1200
Contrast Ratio (up to)
4000:1
Lamp Type
255W AC
Lamp Life (up to)
3800 hours normal / 6000 hours eco
Screen Size (diagonal)
61.5 to 116.6 in. / 1.6 to 2.96m
Throw Ratio
0.36 to 1
Projection Distance
1.47 to 2.8 ft. / 0.45 to 0.85m
Zoom
1 to 1.4
Focus
Manual
F number, fnumber
F=1.8
Horizontal (Analog/Digital)
15-100 kHz
Vertical (Analog/Digital)
50-120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Macintosh Compatibility
Yes
RGB1(analog)
VGA 15-pin D-sub, Component video using ADP-CV 1E adapter
RGB2(digital)
HDMI/HML w/HDCP
RGB3(digital)
HDMI w/HDCP
RGB4(digital)
USB A Type
Video 1
RCA
Audio 1
1/8 in. stereo
Audio 2
L/R RCA (shared by video sources)
Monitor out
VGA 15-pin D-sub
Audio out
Yes (variable)
Microphone
1/8 in. stereo
Audio
20W speaker
External Control
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity
Separate Sync / Composite Sync / Sync on G
Networking
RJ-45 Monitoring
Power Requirements
100-240V AC, 50/60 Hz
Input Current
3.8A/1.6A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)
337W / 221W / 8W / 0.2W
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)
16.9 x 23.3 x 4.4 in. / 429 x 592 x 112mm
Net Weight
12.4 lbs. / 5.6 kg
Fan Noise
38 dB normal / 28 dB eco
Regulations
USA UL 60950-1 FCC Class B, C-UL CSA 60950-1 ICES-003 Class B
Humidity
20-80% non-condensing
