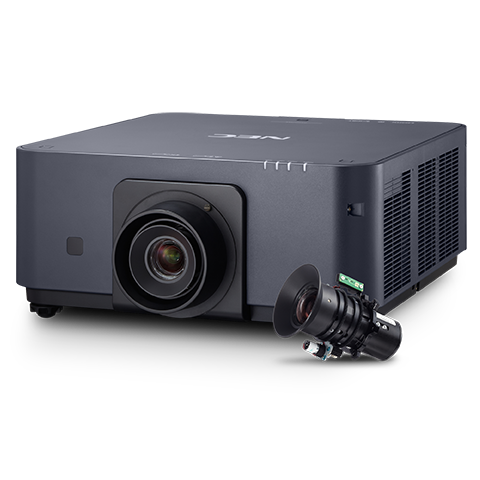

6000-lumen Advanced Professional Installation Laser Projector w/Lens
Think about projection technology in a whole new light! The NEC PX602UL is a powerful installation laser projector wi...
Read MoreTechnical Specifications
Detailed technical information for this product.
Display Technology
DLP (0.67" DMD)
Light Output(Lumens)
6000 normal
Native
WUXGA 1920 x 1200
Maximum
4K 4096 x 2160
Contrast Ratio (up to)
10,000:1 with auto iris
Lamp Type
Laser/Phosphor
Lamp Life (up to)
20,000 hours
Screen Size (diagonal)
50 to 300 in. / 1.27 to 7.62m
Projection Distance
2.58 to 114.9 ft. / 0.79 to 35.0m
Focus
Power
Shift
Mechanical +/-0.5 vertical, +/-0.15 horizontal
Horizontal (Analog/Digital)
Analog: 15-100kHz, Digital: 15-153kHz
Vertical (Analog/Digital)
Analog: 48-120Hz, Digital: 24-120Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
Yes
RGB1(analog)
VGA 15-pin D-sub
RGB2(analog)
5-BNC
RGB2(digital)
HDMI w/HDCP
RGB3(digital)
HDMI w/HDCP
RGB4(digital)
DisplayPort w/HDCP
RGB5(digital)
HDBaseT
Monitor out
HDMI
External Control
RS-232, IR, DDC/CI, USB
Sync Compatiblity
Separate Sync / Composite Sync / Sync on G
Power Requirements
100-240V AC, 50/60 Hz
Input Current
6.8-2.5A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)
590W / 460W / 4.15W / 0.28W
Optional Lenses
NP33ZL, NP34ZL, NP35ZL, NP37ZL, NP38ZL
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)
19.1 x 22.6 x 8.5 in. / 484 x 575 x 217mm
Net Weight
40.8 lbs. / 18.5 kg
Fan Noise
39 dB normal / 34 dB eco
Regulations
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
Humidity
20-80% non-condensing
