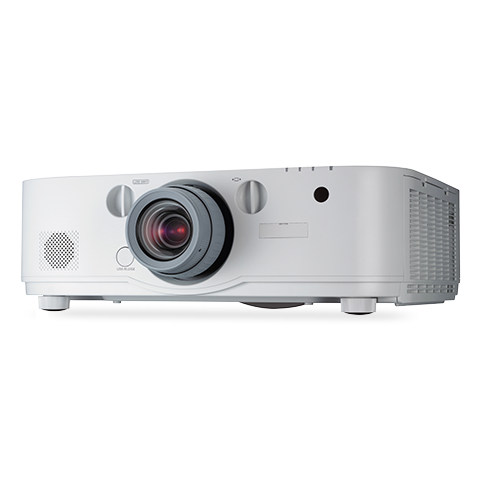

5700 lumen Widescreen Advanced Professional Installation Projector
NEC's PA571W is a 5700-lumen widescreen advanced professional installation model that appeases corporate and higher e...
Read MoreTechnical Specifications
Detailed technical information for this product.
Display Technology
0.75" LCD w/ MLA
Light Output(Lumens)
5700 normal
Native
WXGA 1280 x 800
Maximum
4K 4096 x 2160
Contrast Ratio (up to)
5000:1 with auto iris
Lamp Type
330W AC
Lamp Life (up to)
3000 hours normal / 4000 hours eco
Screen Size (diagonal)
40 to 500 in. / 1.02 to 12.7m
Throw Ratio
1.5 to 3.02
Projection Distance
2.5 to 68.5 ft. / 0.74 to 20.9m
Zoom
1 to 2.01
Focus
Manual
F number, fnumber
F=1.7 to 2.37, f=24.4 to 48.6mm
Shift
Mechanical -0.1 to +0.6 vertical, +/-0.3 horizontal
Horizontal (Analog/Digital)
Analog: 15-100kHz, Digital: 15-153kHz
Vertical (Analog/Digital)
Analog: 48-120Hz, Digital: 24-120Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA, 4K
Macintosh Compatibility
Yes
RGB1(analog)
VGA 15-pin D-sub
RGB2(analog)
5-BNC
RGB3(digital)
HDMI w/HDCP
RGB4(digital)
HDMI w/HDCP
RGB5(digital)
DisplayPort w/HDCP
Audio 1
Mini stereo
Audio 2
Mini stereo
Monitor out
HDMI
Audio out
1/8 in. stereo (Variable audio out)
Audio
10W mono
External Control
RS-232, IR, DDC/CI, USB
Sync Compatiblity
Separate Sync / Composite Sync / Sync on G
Power Requirements
100-240V AC, 50/60 Hz
Input Current
5.1-2.1A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)
463W / 377W / 4.7W / 0.11W
Optional Lenses
NP11FL, NP12ZL, NP13ZL, NP14ZL, NP15ZL, NP30ZL
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)
19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm
Net Weight
18.5 lbs. / 8.4 kg
Fan Noise
39 dB normal / 33 dB eco
Regulations
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
Humidity
20-80% non-condensing
