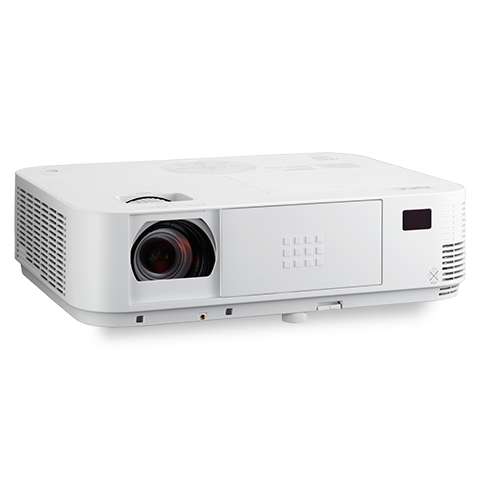

3600-Lumen XGA Projector with Dual HDMI Inputs and 1.7X optical zoom
Easy to use and at the right price, M Series projectors using the latest DLP(R) technology from Texas Instruments pro...
Read MoreTechnical Specifications
Detailed technical information for this product.
Display Technology
DLP (0.55" DMD)
Light Output(Lumens)
3600 normal
Native
XGA 1024 x 768
Maximum
WUXGA 1920 x 1200
Contrast Ratio (up to)
10,000:1
Lamp Type
250W AC / 150W eco
Lamp Life (up to)
3500 hours normal / 8000 hours eco
Screen Size (diagonal)
30 to 300 in. / 0.76 to 7.6m
Projection Distance
3.0 to 52.4 ft. / 0.9 to 15.97m
Zoom
1.7
Focus
Manual
F number, fnumber
F=2.4 to 3.1, f=17.09 to 29.05mm
Horizontal (Analog/Digital)
15-100 kHz
Vertical (Analog/Digital)
50-120 Hz
Supported Video Standards
NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
Yes
RGB1(analog)
VGA 15-pin D-sub
RGB3(digital)
HDMI w/ HDCP
RGB4(digital)
HDMI w/ HDCP
RGB5(digital)
USB A type
Video 1
RCA
Audio 1
L/R RCA (shared by video sources)
Audio 2
1/8 in. stereo
Audio 3
Microphone
Monitor out
VGA 15-pin D-sub
Audio out
Yes (variable)
Audio
20W speaker
External Control
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity
Separate Sync / Composite Sync / Sync on G
Power Requirements
100-240V AC, 50/60 Hz
Input Current
3.6A/1.8A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)
316W / 205W / 2.6W / 0.2W
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)
14.5 x 11.5 x 4.3 in. / 368 x 292 x 108mm
Net Weight
7.7 lbs. / 3.5 kg
Fan Noise
36 dB normal / 31 dB eco
Regulations
UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
Humidity
20-80% non-condensing
