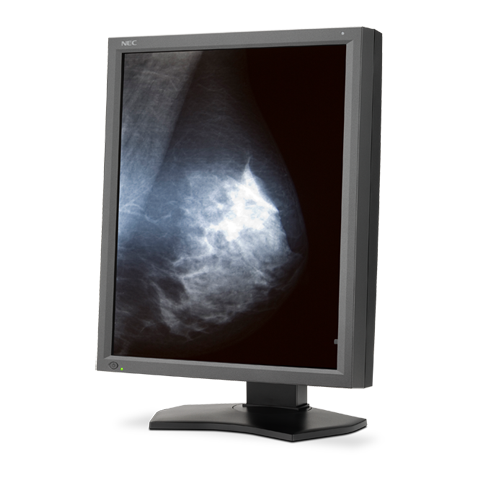

21 Grayscale 5-Megapixel Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)
The 21.3 NEC MultiSync MD211G5 an LED-backlit medical-grade widescreen diagnostic display, is designed for the demand...
Read MoreTechnical Specifications
Detailed technical information for this product.
Viewable Image Size
21.3"
ColorType
Grayscale
MegaPixels
5MP
Native Resolution
2048 x 2560
Pixel Pitch
0.17mm
Pixels Per Inch
154@ native resolution
Brightness (typical)
500 cd/m2 calibrated / 1200 cd/m2 max
Contrast Ratio (typical)
1200:1
Response Time
25ms
Lookup Table
13.5-bit
Displayable Colors
1024 levels of gray out of a palette of 12277
Horizontal (Analog/Digital)
30-135 kHz
Vertical
25-75 Hz
Digital
DisplayPort, DVI-D
On
80W
Power Savings Mode
7W
Net (with stand)
18.7 x 15.9-21.3 x 9 in. / 474.5 x 403.3-541.8 x 227.6mm
Net (without stand)
18.7 x 15.4 x 3.9 in. / 474.5 x 390 x 98.2mm
Net Weight (with stand)
26 lbs. / 11.8 kg
Net Weight (without stand)
19.0 lbs. / 8.6 kg
Operating Humidity
30-80%
Operating Altitude
9842 ft. / 3000m
Storage Humidity
10-85%
Storage Altitude
32,808 ft. / 10,000m
Optional
AMD triple-head video card (MDA-W5000), NVIDIA triple-head video card (MDN-K2000), NVIDIA dual-head video card (MDN-Q2000D), AMD dual-head video card (MDA-V5800D), Matrox triple-head video card (MDM-XENPRO), Medical calibration sensor (MDSVSENSOR2), Medical calibration sensor (MDSVSENSOR3)
