Built for Commercial Excellence
Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

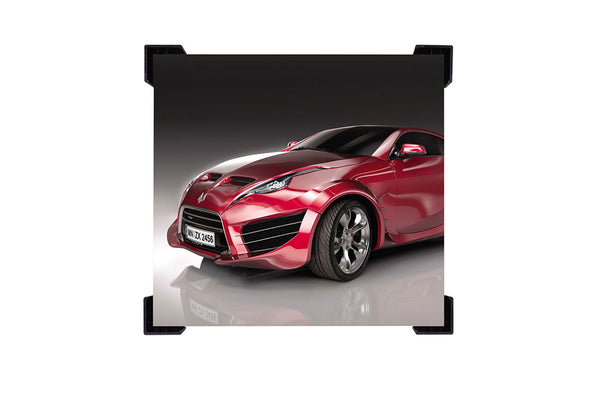

Unit Case
LED Controller
Software (Control Manager)
Technical Specifications
Detailed technical information for this product.
Pitch Name
P1.0
Pixel Pitch (mm)
1.0
LED Type
SMD 3-in-1
Resolution (W x H, per Unit Case)
384 x 360
Dimensions (W x H x D, per Module)
192 x 180 x 16 mm
Dimensions (W x H x D, per Unit Case)
384 x 360 x 77 mm
Weight (per Unit Case)
5kg
Weight (per SQM)
36 kg¹ ¹LED Unit Case (Except LED Controller)
Unit Frame Material
Die Casting Allumium
Unit Frame Color
Black
Access
Rear
Brightness (After Calibration)
1,000nit
Contrast Ratio
6,000:1
Viewing Angle (H x V)
160 x 140
Bit Depth
16bit
Brightness Uniformity
≥ 97%
Color Uniformity
±0.015Cx, Cy
Color Gamut
NTSC 100%, BT2020 94%
Color temperature - Default
6,500K
Color temperature - Adjustable
3,200 ~ 9,300K
Video Frame Rate
50/60Hz
Input Power Range
100-240 V~, 50/60 Hz
Power consumption - Max/Typ (per Unit Case)
170/85 W
Power consumption - Max/Typ (per SQM)
1,230/615 W
Refresh rate
1,920Hz
Video Inputs
HDMI In, DP In/Out, DVI, USB
Control
RJ45 In/Out, RS232C In/Out
Special Features
Temperature Sensor, Ambient Light Sensor, Current Sensor
Working Temperature/Humidity
0°C to 40°C at 10% to 80%
Storage Temperature/Humidity
-20°C to 60°C at 5% to 90%
LED Lifetime
100,000hrs
Safety
IEC 60950-1/EN 60950-1/UL 60950-1
EMC
FCC Class "A"/CE/KC
Environment
RoHS
