Samsung

IW008J-R

Call for price

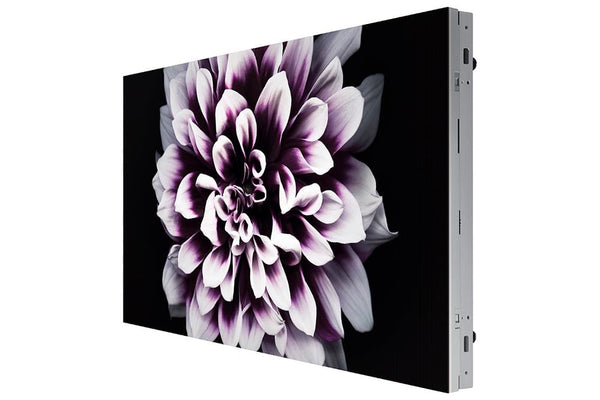

A next-generation display redefining what it means to deliver a one-of-a-kind visual experience.Perfect black presentation with Black Seal TechnologySuperior color purity with an innovative color enhancing Ultra Chroma TechnologyEnsuring zero downtime with reliable remote power supply solution
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: IW008J-R

UPC: 887276439082

MFG Part: IW008J-R

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Experience Greatness

Experience Greatness

The Wall is a new generation of display technology delivering a truly exclusive experience. Unparalleled in its visua...

Read More
Black Seal Technology

Black Seal Technology

The fusion of an exceptionally black base with specialized Black Seal Technology, delivers pure black levels for unpa...

Read More

Ultra Chroma Technology

The Wall’s Ultra Chroma Technology produces vibrant, yet natural colors for a true-to-life visual experience. A narro...

Read More
Quantum HDR Technology

Quantum HDR Technology

Boosting the industry-leading picture quality engine, The Wall utilizes advanced HDR picture refinement technologies ...

Read More
Infinity design

Infinity design

The Wall seamlessly blends into its surroundings with a slim, bezel-less design. Furthermore, The Wall’s frame featur...

Read More
Modular technology

Modular technology

* For any customized display outside the 16:9 or 21:9 aspect ratio, content must be set manually to the configuration...

Read More
Remote power supply solution

Remote power supply solution

Due to The Wall’s redundant system design, it is not impacted in the event of an unexpected power module failure. The...

Read More
Total ecosystem

Total ecosystem

The Wall provides a total display solution for any business. Samsung’s MagicINFO solution provides device and content...

Read More

Technical Specifications

Detailed technical information for this product.

Pixel Pitch 0.84mm
Pixel Configuration 1 red, 1 green, 1 blue
Configuration (LxH, per cabinet) 960x540 pixels
Diode Type Flip-chip RGB LED
Dimensions (W x H x D, Cabinet) 806.4x453.6x72.2 mm
Dimensions (inch, inchxD, per cabinet) 36.4x2.8 inch
No. of Modules (WxH, per cabinet) 4 x 3
Weight (per cabinet/per ㎡) 12.4 kg / 33.9kg
Processor Snow processor
Brightness (Peak/Max) 1,600 nit / 500 nit
Contrast Ratio 24,000 : 1
HDR Compatibility LED HDR / HDR10+ support / Multi-link HDR
Viewing angle - Horizontal 160°
Viewing angle - Vertical 140°
Bit Depth 16 bit (Internal processing 20bit)
Calibration D Gamma / Pixel to Pixel / Module to Module / Quality Mode
Color Temperature - Default 6,500K+-500K (Floating bin)
Color temperature - Adjustable 2,800K ~ 10,000K (using S-Box)
Video Rate 50/60 Hz
Input Power Range 48Vdc
Power consumption - Max 421 (W/m²) / 154 (W/Cabinet)
Power consumption - Typical 306 (W/m²) / 112 (W/Cabinet)
Heat Generation - Max 1,437 (BTU/m²) / 526 (BTU/Cabinet)
Heat Generation - Typ 1,045 (BTU/m²) / 383 (BTU/Cabinet)
Refresh rate 3,840 Hz
Power Redundancy Yes
Working Temperature / Humidity 0°C~+40°C / 10%~80%RH
Storage Temperature / Humidity -20°C~+45°C / 5%~95%RH
IP Rating IP20
LED Lifetime 100,000 hours
Connectivity HDBT
MagicINFO Yes
Sensor Temperature
Operating System Tizen
Other Eco Image Enhancer
Certification EMC Class A, Safety 60950-1
Service Front
Box Dimension (WxDxH) 940 x 587 x 199
Box Volume (m3) 0.11
Package Weight (kg, per cabinet) 16.7 kg
Accessories Décor Frame (Standard), Frame Kit
Disclaimer Peak Value according to IDMS (Information Display Measurement Standard)
Disclaimer Measured under 10lux light. Contrast in darkroom exceeds 1000000:1
