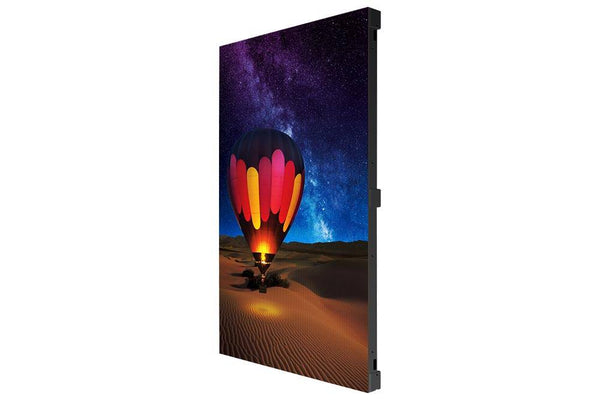

Samsung IF025H-D IFH-D 2.5mm series Indoor LED Panel

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: IF025H-D

UPC: 8801643106898

MFG Part: IF025H-D

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Enliven Indoor LED Content

Samsung’s IF-D Series LED displays deliver a consistent and colorful presentation in any indoor environment. Configur...

Optimize Content Brilliance

The IF-D Series’ dynamic peaking technology combats natural or ambient lighting interference. Dynamic peaking elevate...

Showcase True-to-Life Imagery

Certain LED displays struggle with oversaturation that can give skin tones an unnatural reddish hue. Samsung’s IF-D S...

Elevate Contrast and Brightness

Samsung’s IF-D Series displays leverage strict Scene Adaptive HDR technology to create a comfortable, uniform long-te...

Reinforce Accurate Color Expression

A unique grayscale management algorithm empowers the IF-D Series to deliver consistent red, green and blue hues witho...

Customize Color Presentation

Detailed color management also allows IF-D Series users to select, store and deploy the RGB shades that best fit thei...

“Mask” Visual Inconsistencies

Dynamic lighting can expose higher pixel-pitch LED displays’ lead framework. IF-D Series eliminate this visual incons...

Fine-Tune Uniformity

Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all IF-D Series sub-pixels for...

Expand Composition Possibilities

The IF-D Series’ advanced design includes eye-catching convex* and concave curved configurations (up to 6,000R). Addi...

Streamline UHD Content Delivery

Samsung’s compatible S-Box condenses the delivery of compelling content to a single, centralized device. The S-Box tr...

Manage Content and Devices Anywhere

Compatibility with the MagicInfo platform enables IF-D Series users to create, schedule and deploy content across an ...

Microsoft Netherlands

Indoor LED displays empower Microsoft to achieve more

Superdry Norway

LED wall creates larger-than-life fashion experience

Atlanta Hawks State Farm Arena

NBA’s first 360° LED screen gives Atlanta Hawks a big home court advantage

Alma Pallacanestro Trieste Basketball Club

Indoor digital displays delivering all the Trieste action

Shinhan Bank

Delivers the company’s class and new vision

2018 Samsung DOOH display solutions

Discovering new opportunities for advertisement through state-of-the-art-technology

2018 Samsung Airport Display Solutions

Providing information to passengers through state-of-the art technology

2018 Samsung QSR Display Solutions

Integrated digital signage delivering compelling images and information at QSRs

2018 Samsung Education Display Solutions

Samsung Education Display Solutions

2018 Samsung Retail Display Solution

Reinventing the shopping experience through state-of-the-art technology

Samsung Smart LED Signage IF Series catalog

Samsung Showcases Innovative Display Solutions at New, State-of-the-Art Executive Briefing Center in Irvine

Samsung Electronics America, Inc. announced the opening of the latest Executive Briefing Center (EBC) in Irvine, Cali...

Samsung showcases innovative display solutions optimized for broadcast applications at NAB 2019

Samsung provides the broadcast industry with display technologies that deliver crisp resolution and life-like visuals

Step into the new era where your wall becomes a display

Samsung Electronics has changed the rules of the game with a Samsung LED for Home – The Wall and IF Series MicroLED d...

Pixel Pitch 2.5 mm

Pixel Configuration 1 red, 1 green, 1 blue

Configuration (LxH, per cabinet) 192x288 pixels

Diode Type Surface Mount Device (SMD)

Dimensions (㎜, LxHxD, per cabinet) 480x720x65 mm (per cabinet)

Dimensions (inch, inchxD, per cabinet) 34 inch x 2.56 inch

Weight 7.4kg (per cabinet)

Brightness (Peak/Max) 2,400 nit / 1,200 nit

Contrast Ratio (Peak/Max) 10,000:1 / 5,000:1

Viewing angle - Horizontal 160°

Viewing angle - Vertical 160°

Bit Depth 16bit per Color

Color Temperature - Default 6,500K

Color temperature - Adjustable 2,800 ~ 10,000K (use S/BOX)

Video Rate 50/60 Hz

Cabinet - Input Power Range 100~240 VAC, 50/60 Hz

Power consumption - Max 580 (W/m²) / 200 (W/Cabinet)

Power consumption - Typical 193 (W/m²) / 67 (W/Cabinet)

Heat Generation - Max(BTU/SF) 184 BTU/SF per hour

Refresh rate 1,920Hz, 3,840 Hz Selectable

Working Temperature / Humidity 0°C~40°C / 10~80%RH

Storage Temperature / Humidity -20°C~45°C / 5~95%RH

IP Rating IP20

LED Lifetime 100,000 hours to half brightness

Certification EMC Class A, Safety 60950-1

Service Front(3) and Parts Rear(4)

Box Dimension (WxDxH) 606 x 847 x 179

Box Volume (m3) 0.092

Package Weight (kg, per cabinet) 10.4kg (per cabinet)

Concave 6000R

Disclaimer Peak Value according to IDMS (Information Display Measurement Standard)

Disclaimer Front Service : IFJ and IF-D offer Front Service to Power Supply/Main Board on a cabinet level

Disclaimer Parts Rear Service : IFJ and IF-D's Power Supply/Main Board can be accessed from the rear
