Samsung

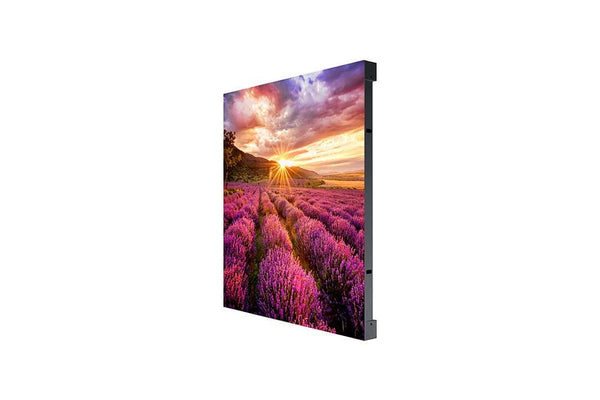

IF020H-E

Call for price
P2.0 / Revitalize indoor customer engagement.LED HDR picture refinement technology Detailed, customized color presentation Clean and hassle-free installation
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: IF020H-E

MFG Part: IF020H-E

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Revitalize Indoor Customer Engagement

Revitalize Indoor Customer Engagement

Samsung’s fine pixel pitch IF-E Series LED displays captivate customers through more realistic and memorable content....

Read More
Bright And Clear LED Expression

Bright And Clear LED Expression

The IF-E Series’ integrated HDR adaptation optimizes gradation within individual scenes for a consistent, dazzle-free...

Read More
Accurate Color in Low Brightness Arena

Accurate Color in Low Brightness Arena

Conventional LED displays struggle to present red, green and blue color hues accurately in low grayscale settings. Th...

Read More
Detailed, Customized Color Presentation

Detailed, Customized Color Presentation

Compatibility with various color gamut settings allows broadcast studios, galleries and other specialized indoor oper...

Read More
Consistent, Uniform Content Delivery

Consistent, Uniform Content Delivery

Each IF-E Series display undergoes thorough factory calibration to optimize sub-pixel uniformity, brightness and colo...

Read More
Clean And Hassle-free Installation

Clean And Hassle-free Installation

The IF-E Series’ compact design ensures a flexible, seamless implementation in any indoor setting. Full-front access ...

Read More
Versatile and Efficient Operations

Versatile and Efficient Operations

An all-inclusive design simplifies management for indoor businesses. Samsung’s LED Signage Box (S-Box) transmits UHD ...

Read More
Durable, Long-lasting Performance

Durable, Long-lasting Performance

An energy-efficient cabinet design extends the IF-E Series’ lifespan while reducing operational costs. The IF-E Serie...

Read More

Technical Specifications

Detailed technical information for this product.

Pixel Pitch 2.0 mm
Pixel Configuration 1 red, 1 green, 1 blue
Configuration (LxH, per cabinet) 240x270 pixels
Diode Type Surface Mount Device (SMD)
Dimensions (㎜, LxHxD, per cabinet) 480x540x65 mm
Dimensions (inch, inchxD, per cabinet) 28.5 inch x 2.56 inch
No. of Modules Per Panel (W × H) 2 x 3
Weight (per cabinet/per ㎡) 5.8Kg / 22.4Kg
Weight Per m² 5.8 kg / 22.4 kg
Brightness (Peak/Max) 2,000 nit / 1,000 nit
Contrast Ratio (Peak/Max) 10,000:1 / 5,000:1
Viewing angle - Horizontal 160°
Viewing angle - Vertical 160°
Bit Depth 16 bit (Internal processing 18bit)
Color Temperature - Default 6,500K
Color temperature - Adjustable 2,800 ~ 10,000K (use S/BOX)
Video Rate 50/60 Hz
Cabinet - Input Power Range 100~240 VAC, 50/60 Hz
Power consumption - Max 695 (W/㎡) / 180 (W/Cabinet)
Power consumption - Typical 232 (W/㎡) / 60 (W/Cabinet)
Heat Generation - Max(BTU/SF) 220 BTU/SF per hour
Heat Generation - Typ (per hour) 1,920 Hz, 3,840 Hz Selectable
Working Temperature / Humidity 0°C~40°C / 10~80%RH
Storage Temperature / Humidity -20°C~45°C / 5~95%RH
IP Rating IP20
LED Lifetime 100,000 hours to half brightness
Certification EMC Class A, Safety 60950-1
Service Front and Rear
Box Dimension (WxDxH) 606x667x179
Box Volume (m3) 0.073
Package Weight (kg, per cabinet) 9.1kg
Curve (Concave) 6000R
Disclaimer Peak Value according to IDMS (Information Display Measurement Standard)
