Call for price

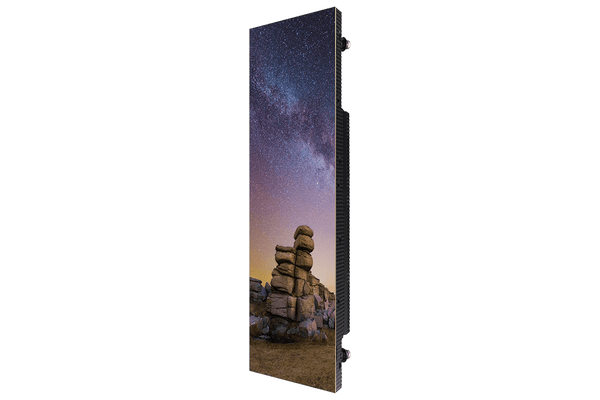

P2.5 LED Signage that offers an ideal combination of superior picture quality and intuitive usability.Cost-saving solution through easier installation and affordable priceSupport for various installation scenarios through flexible designLED HDR technology for clear, accurate picture presentation
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: IE025R-F

MFG Part: IE025R-F

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Captivate potential customers

Captivate potential customers

Samsung’s IER series LED displays deliver stunning picture quality at a cost-efficient price point. The displays feat...

Read More
Easier, cost-saving installation

Easier, cost-saving installation

The IER series’ new design features larger screen sizes and is lighter than previous models. This means easier instal...

Read More
Flexible design

Flexible design

The IER series’ advanced design provides flexibility for any indoor retail or other business environment. With portra...

Read More
Clearly refined visuals

Clearly refined visuals

LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse...

Read More
Accurate color in low brightness arena

Accurate color in low brightness arena

Conventional LED displays struggle to present red, green and blue color hues accurately in low grayscale settings. Th...

Read More
Fine-tuned uniformity

Fine-tuned uniformity

Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all sub-pixels for uniform bri...

Read More
Streamlined UHD content delivery

Streamlined UHD content delivery

Samsung’s compatible S-Box condenses the delivery of compelling content to a single, centralized device. The S-Box tr...

Read More
Manage content and devices anywhere

Manage content and devices anywhere

Compatibility with the MagicINFO platform enables IER series users to create, schedule and deploy content across an e...

Read More

Technical Specifications

Detailed technical information for this product.

Pixel Pitch 2.5 mm
Pixel Configuration 1 red, 1 green, 1 blue
Configuration (LxH, per cabinet) 96x216 pixels
Diode Type Surface Mount Device (SMD)
Dimensions (㎜, LxHxD, per cabinet) 240x540x81 mm
Dimensions (inch, inchxD, per cabinet) 23.3 inch x 3.18 inch
No. of Modules (WxH, per cabinet) 1 x 3
Weight (per cabinet/per ㎡) 3.2Kg / 24.7Kg
Brightness (Peak/Max) 1,200 nit / 600 nit
Contrast Ratio (Peak/Max) 6,000:1
Viewing angle - Horizontal 160°
Viewing angle - Vertical 160°
Bit Depth 16 bit (Internal processing 18bit)
Color Temperature - Default 6,500K
Color temperature - Adjustable 2,800 ~ 10,000K (use S/BOX)
Video Rate 50/60 Hz
Cabinet - Input Power Range 100~240 VAC, 50/60 Hz
Power consumption - Max 386 (W/㎡) / 50 (W/Cabinet)
Power consumption - Typical 128 (W/㎡) / 17 (W/Cabinet)
Heat Generation - Max(BTU/SF) 122.3 BTU/SF per hour
Refresh rate 3,840 Hz
Working Temperature / Humidity 0°C~40°C / 10~80%RH
Storage Temperature / Humidity -20°C~45°C / 5~95%RH
IP Rating IP20
LED Lifetime 100,000 hours to half brightness
Certification EMC Class A, Safety 60950-1, FCC, UL, CB, KCC, RoHS
Service Front
Box Dimension (WxDxH) 653 x 148 x 354
Box Volume (m3) 0.342
Package Weight (kg, per cabinet) 4.9 kg
Curve (Concave) 3000R
Curve (Convex) 3000R
Rotation Yes (90 degree clockwise)
Ceiling / Incline Yes
L-shape Yes
Disclaimer Peak Value according to IDMS (Information Display Measurement Standard)
Disclaimer For ceiling installation, screen should be installed at least 1.8m height with no vibration
