Call for price

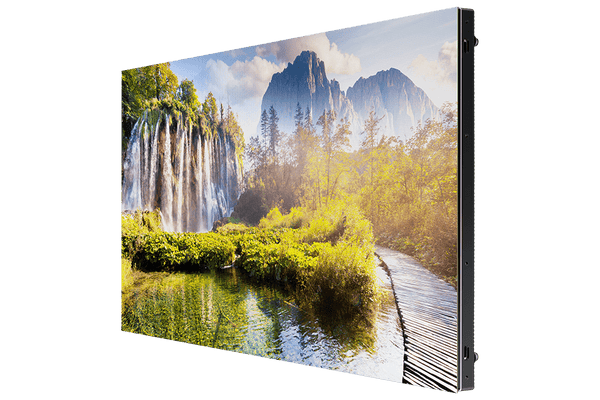

P1.5 LED Signage that offers an ideal combination of superior picture quality and intuitive usability.Cost-saving solution through easier installation and affordable priceSupport for various installation scenarios through flexible designLED HDR technology for clear, accurate picture presentation
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: IE015R

MFG Part: IE015R

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Captivate potential customers

Captivate potential customers

Samsung’s IER series LED displays deliver stunning picture quality at a cost-efficient price point. This displays can...

Read More
Easier, cost-saving installation

Easier, cost-saving installation

The IER series supports two cabinet types. One version features a larger, lighter screen compared to conventional cab...

Read More
Flexible design

Flexible design

The IER series’ advanced design provides flexibility for any indoor retail or other business environment. With suppor...

Read More
Clearly refined visuals

Clearly refined visuals

LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse...

Read More
Accurate color in low brightness arena

Accurate color in low brightness arena

Conventional LED displays struggle to present red, green and blue color hues accurately in low grayscale settings. Th...

Read More
Fine-tuned uniformity

Fine-tuned uniformity

Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all sub-pixels for uniform bri...

Read More
Streamlined UHD content delivery

Streamlined UHD content delivery

Samsung’s compatible S-Box condenses the delivery of compelling content to a single, centralized device. The S-Box tr...

Read More
Manage content and devices anywhere

Manage content and devices anywhere

Compatibility with the MagicINFO platform enables IER series users to create, schedule and deploy content across an e...

Read More

Technical Specifications

Detailed technical information for this product.

Pixel Pitch 1.5 mm
Pixel Configuration 1 red, 1 green, 1 blue
Configuration (LxH, per cabinet) 640x360 pixels
Diode Type Surface Mount Device (SMD)
Dimensions (㎜, LxHxD, per cabinet) 960x540x79.5 mm
Dimensions (inch, inchxD, per cabinet) 43.3 inch x 3.13 inch
No. of Modules (WxH, per cabinet) 4 x 3
Weight (per cabinet/per ㎡) 11.8Kg / 22.8Kg
Brightness (Peak/Max) 1,000 nit / 500 nit
Contrast Ratio (Peak/Max) 6,000:1
Viewing angle - Horizontal 160°
Viewing angle - Vertical 160°
Bit Depth 16 bit (Internal processing 18bit)
Color Temperature - Default 6,500K
Color temperature - Adjustable 2,800 ~ 10,000K (use S/BOX)
Video Rate 50/60 Hz
Cabinet - Input Power Range 100~240 VAC, 50/60 Hz
Power consumption - Max 502 (W/㎡) / 260 (W/Cabinet)
Power consumption - Typical 167 (W/㎡) / 87 (W/Cabinet)
Heat Generation - Max(BTU/SF) 159.1 BTU/SF per hour
Refresh rate 3,840 Hz
Power Redundancy Yes
Working Temperature / Humidity 0°C~40°C / 10~80%RH
Storage Temperature / Humidity -20°C~45°C / 5~95%RH
IP Rating IP20
LED Lifetime 100,000 hours to half brightness
Certification EMC Class A, Safety 60950-1, FCC, UL, CB, KCC, RoHS
Service Front
Box Dimension (WxDxH) 1,119 x 699 x 206
Box Volume (m3) 0.161
Package Weight (kg, per cabinet) 17.5kg
Curve (Concave) 12,000R
Rotation Yes (90 degree clockwise)
Disclaimer Peak Value according to IDMS (Information Display Measurement Standard)
