Built for Commercial Excellence
Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

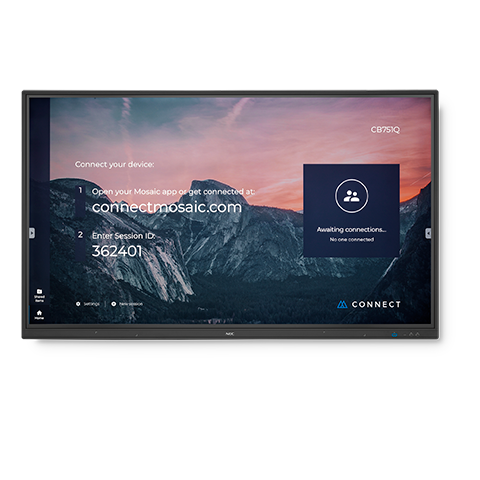

86” UHD collaborative display
Integrated 10pt IR touch with built in Linux based 8.0 SoC
Mosaic wireless presentation software
Mosaic Canvas interactive whiteboard software
Browser
Annotation tools
OPS slot
3x HDMI 2.0, VGA, LAN, 6x USB, RS-232
350cd/m^2 MAX
3yr warranty
Wall mount included
Technical Specifications
Detailed technical information for this product.
Panel Technology
S-IPS
Viewable Image Size
86 "
Aspect Ratio
16:9
Native Resolution
2160x3840
Pixel Pitch
0.49 mm
Pixels Per Inch
45 @ native resolution
Backlight Type
LED Direct-lit
Brightness (typical)
300 cd/m2
Brightness (maximum)
350 cd/m
Contrast Ratio (typical)
21200:1
Viewing Angle (typical)
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray)
9 md
Refresh Rate
60Hz
Active Screen Area
74.6 x 41.9 in. / 1895.1 x 1065.9mm
Orientation
Landscape only
Displayable Colors
More than 1.07 billion
Horizontal (Analog/Digital)
Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz
Video/Sync
Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive
PC Signal Compatibility
Yes
Macintosh Signal Compatibility
Yes
Video/Sync
Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive
Input Terminals/Output Terminals
Analog: VGA 15-pin D-sub, Digital: HDMI 2.0 x3, Audio: Audio Mini-Jack, HDMI Audio, External Control: RS-232C, LAN (100Mb), Input: HDMI 2.0 x3, Data: USB 2.0 x6 5V/2A Powered, USB Type-B (Upstream), USB x 2 (Both for touch), Audio: 3.5mm Mini-Jack, SPDIF, External Control: LAN (100Mb), Audioout: 1/8" Stereo
On
365W (per single monitor)
ECO Mode Standby
<0.5W
Power Consumption (max)
365W (Brightness Max), 620W (All Functions Maxed)
Input Current
6.2A @ 100V, 2.5A @ 240V
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD)
in./ in., in./ in. : mm/ mm, mm/ mm Without stand: 77 x 45.7 x 3.4 in. / 1957.1 x 1159.8 x 86.8 mm, Shipping: 87 x 53.9 x 11 in. / 2211 x 1370 x 280mm
Weight/VESA Hole Configuration
Net Weight (with stand): 148.4 lbs. / 67.3 kg, Shipping: 210.5 lb / 95.5 kg, 800 x 600mm (4-hole, M8)
Operating Temperature
41-104°F / 5-40°C
Operating Humidity
20-80%
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-140°F / -20-60°C
Storage Humidity
10-90%
Storage Altitude
40,000 ft. / 12,192m
Warranty
3 years
