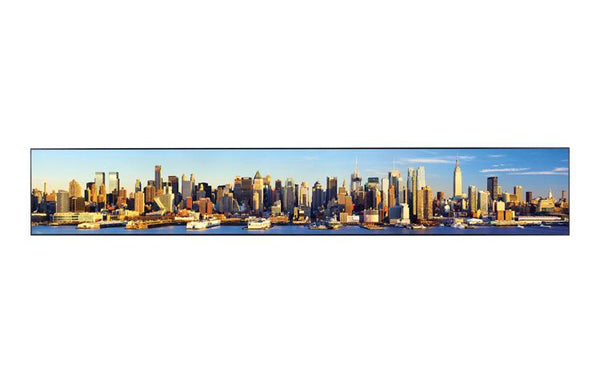

86” (85.6” Diagonal) Ultra-Stretch Digital Signage

Home
86” (85.6” Diagonal) Ultra-Stretch Digital Signage

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: 86BH5C

MFG Part: 86BH5C

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

86" ULTRA STRETCH INSTALLATION VIDEO

Learn how to install the 86BH5C here.

LG 86” Ultra Stretch Pillar Introduction

Watch this video to learn about the 86"Ultra Stretch Pillars: Single Digital Pillar, Dual Digital Pillar, Quad Digita...

Ultra HD Resolution (3840 x 600)

Ultra HD large screens deliver an immersive viewing experience.

58:9 Extended Wide Format

Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.

4 Divided PBP in Landscape or Portrait

The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installat...

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.

LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.

Screen Size 86"

Panel Technology IPS

Aspect Ratio 58:9

Native Resolution 3,840 x 600 (UHD)

Contrast Ratio 1,100:1(Typ)

Response Time 8ms (G to G BW) typ.

Viewing Angle (H x V) 178°/178°

Brightness Typ: 500cd/m2, Min : 400cd/m2

Dynamic Contrast Ratio 500,000:1

Surface Treatment AGP (10% Haze)

Orientation Landscape / Portrait

Input HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card

Output Analog Audio

External Control RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio

Bezel Color Black

Bezel Width 4.4mm (L/R), 5.9mm (T/B)

Monitor Dimension (W x H x D) 85" x 13.7" x 3.2"

Weight (Head) 45.2lbs

Carton Dimensions (W x H x D) 90.2" x 9" x 18.9"

Packed Weight 78lbs

VESA TM Standard Mount Interface 200mm x 600mm

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, PIP/PBP, 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready, 4K Up Scaling

Operating Temperature Range 0°C to 40°C / 32°F to 104°F

Operating Humidity Range 10 % to 80 %

Power Supply 100 -240V~, 50/60Hz

Power Type Built-In Power

Power Consumption (Smart Energy Saving) 30% of typical

Power Consumption (Typ./Max) 180W/220W

Safety UL / cUL / CB / TUV / KC

EMC FCC Class "A" / CE / KCC

OPS Type Compatible Yes

SuperSign-C Yes

SuperSign W-Lite Yes

Basic Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M) Owner's Manual (Website upload)

Optional AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available

Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

UPC TBD
