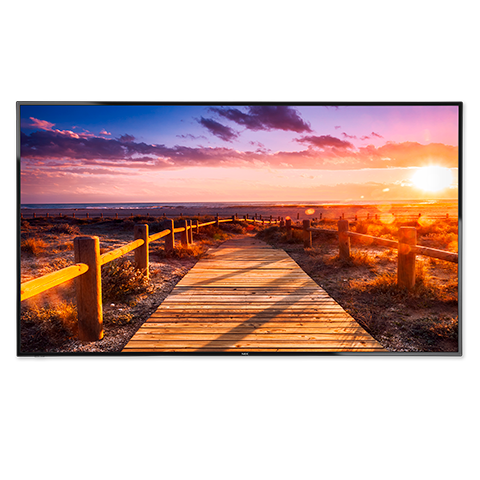

NEC E656 65" LED Backlit Display with Integrated ATSC/NTSC Tuner
NEC E656 65" LED Backlit Display with Integrated ATSC/NTSC Tuner
NEC

NEC E656 65" LED Backlit Display with Integrated ATSC/NTSC Tuner

$1,599.00
Request a Quantity Discount
Order within 3h 24m 12s for shipment tomorrow
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: 19607340

UPC: 805736063554

MFG Part: E656

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Integrated multimedia USB player makes digital signage simple

LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth

Thinner bezel and new mechanical design improves display's aesthetics

24-Hour On/Off timer maintains power schedules

Full HD Resolution allows for excellent image quality

Video signal wake-up function allows for plug and play functionality

Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities

Built-in, low-profile 10W speakers enhance the experience with superior sound

Technical Specifications

Detailed technical information for this product.

Panel Technology VA
Viewable Image Size 65 "
Aspect Ratio 16:9
Native Resolution 1920x1080
Pixel Pitch 0.74 mm
Backlight Type LED Direct-lit
Brightness (typical) 350 cd/m
Contrast Ratio (typical) 24000:1
Viewing Angle (typical) 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz
Active Screen Area 52.2 x 31.6 in. / 1428.5 x 803.5mm
Orientation Landscape
Displayable Colors More than 16.7 million
Horizontal (Analog/Digital) 31-83 kHz (Analog) 15.625/15.734 kHz, 31-83 kHz (HDMI)
Video/Sync Analog RGB 0.7 Vp-p/75 Ohms, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Video/Sync Analog RGB 0.7 Vp-p/75 Ohms, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive
Input Terminals/Output Terminals Digital: HDMI (3), Audio: HDMI Audio, Stereo Mini-Jack, External Control: RS-232C, Audio: SPDIF
On 158W
ECO Mode Standby <0.5W
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.55 in./0.55 in., 0.55 in./0.59 in. ; 13.9mm/13.9mm, 13.9mm/14.9mm, Without stand: 57.4 x 32.9 x 3.5 in. / 1457.9 x 834.5 x 89.5 mm, Shipping: 63.6 x 39.0 x 8.9 in. / 1616.0 x 990.0 x 227.0 mm
Weight/VESA Hole Configuration Net Weight (without stand): 51.8 lbs. / 23.5 kg., Shipping: 71.0 lbs. / 32.2kg, 4 x M6 x 17.5mm (400 x 400)
Operating Temperature 32-104°F / 0-40°C
Operating Humidity 10-80%
Operating Altitude 6563 ft. / 2000m
Storage Temperature 32-104°F / 0-40°C
Storage Humidity 5-85%
Storage Altitude 40,000 ft. / 12,192m
Warranty 3 years
