NEC

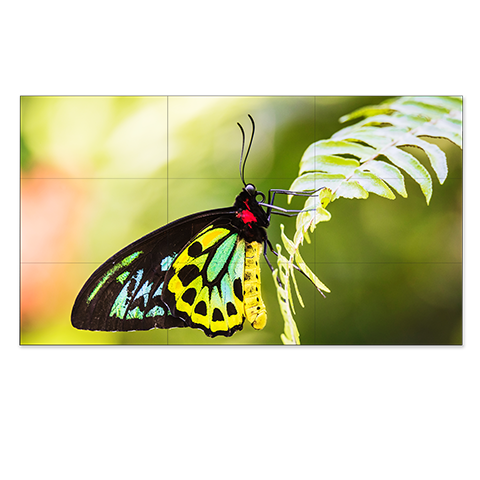

55" Ultra Narrow Bezel S-IPS 3x3 Video Wall Solution

Call for price
NEC's complete 55" 3x3 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp™ and FrameComp technologies, combined with the...
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: UN552-TMX9P

UPC: 805736072211

MFG Part: UN552-TMX9P

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy

Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment

S-IPS panel technology allows for excellent off-angle viewing and less color shift compared to other technologies

Auto ID feature reduces install time in the single press of a button

Expanded daisy chain options with UHD passthrough via DisplayPort enables UHD resolution across the entire wall

Display wall calibration kit, Overframe Bezel Kit and IR/Human sensor complete the solution

Overnight onsite exchange warranty ensures minimum downtime for maximum impact

Input Switching Speed minimizes downtime between source transitions

Human Sensor Accessory ensures digital signage is directed at a targeted audience

Near field communication capabilities for setup and service

Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized

Technical Specifications

Detailed technical information for this product.

Panel Technology S-IPS
Viewable Image Size 55 "
Aspect Ratio 16:9
Native Resolution 1920x1080
Pixel Pitch 0.5 mm
Pixels Per Inch 45 @ native resolution
Backlight Type LED Direct-lit
Brightness (maximum) 700 cd/m2
Contrast Ratio (typical) 1200:1 (without local dimming)
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz
Active Screen Area 47.62 x 26.79 in. / 1209.6 x 680.4mm
Orientation Landscape/Portrait
Displayable Colors More than 1.07 billion
Horizontal (Analog/Digital) Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz
Video/Sync Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive
Factory Calibration Yes
Sensor Calibration (through USB) Yes, External
Calibration with Software NEC Display Wall Calibrator (KT-LFD-CC2)
Calibration Software NEC Display Wall Calibrator (KT-LFD-CC2)
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Video/Sync Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive
Input Terminals/Output Terminals Analog: VGA 15-pin D-sub, Digital: DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D, Audio: Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio, External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote), Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered), Digital: DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS)), Audio: 3.5mm Mini-Jack, External Speaker Jack (2), External Control: LAN (100Mb)
On 150W
ECO Mode Standby <0.5W
Power Consumption (max) 225W (Brightness Max), 380W (All Functions Maxed)
Input Current 4.2A @ 100V, 1.7A @ 240V
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.09 in./0.05 in., 0.09 in./0.05 in. : 2.3 mm/1.2 mm, 2.3 mm/1.2 mm Without stand: 47.8 x 27 x 4.1 in. / 1213.4 x 684.2 x 103.8 mm, Shipping: 56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm
Weight/VESA Hole Configuration Net Weight (with stand): 61.9 lbs. / 28.1kg, Net Weight (without stand): 61.9 lbs. / 28.1 kg., Shipping: 83.8lbs. / 38.0kg, 400 x 400mm (4-hole, M6)
Operating Temperature 41-104°F / 5-40°C
Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
Warranty 3 years
