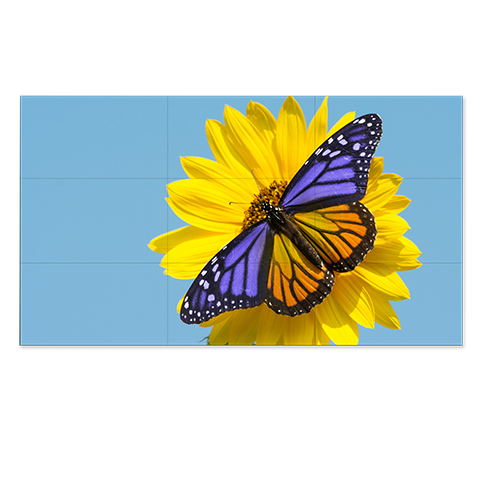

55" Ultra-Narrow Bezel 9 display video wall

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: UN552V-TMX9P

UPC: 805736072235

MFG Part: UN552V-TMX9P

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy

Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment

SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy...

500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience

Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-d...

HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution

New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall

Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display

NEC Display Wall Calibrator, MultiProfiler, and NaViSet Administrator 2 software compatible.

Panel Technology S-IPS

Viewable Image Size 55 "

Aspect Ratio 16:9

Native Resolution 1920x1080

Pixel Pitch 0.5 mm

Pixels Per Inch 45 @ native resolution

Backlight Type LED Direct-lit

Brightness (maximum) 500 cd/m2

Contrast Ratio (typical) 1200:1 (without local dimming)

Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (Gray to Gray) 8 ms

Refresh Rate 60Hz

Active Screen Area 47.62 x 26.79 in. / 1209.6 x 680.4mm

Orientation Landscape/Portrait

Displayable Colors More than 1.07 billion

Horizontal (Analog/Digital) Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz

Video/Sync Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive

Factory Calibration Yes

Sensor Calibration (through USB) Yes, External

Calibration with Software NEC Display Wall Calibrator (KT-LFD-CC2)

Calibration Software NEC Display Wall Calibrator (KT-LFD-CC2)

PC Signal Compatibility Yes

Macintosh Signal Compatibility Yes

Input Terminals/Output Terminals Analog: VGA 15-pin D-sub, Digital: DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D, Audio: Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio, External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote), Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered), Digital: DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS)), Audio: 3.5mm Mini-Jack, External Speaker Jack (2), External Control: LAN (100Mb)

On 150W - Per Display

ECO Mode Standby <0.5W

Power Consumption (max) 225W (Brightness Max), 380W (All Functions Maxed) - Per Display

Input Current 4.2A @ 100V, 1.7A @ 240V Per Display

Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.09 in./0.05 in., 0.09 in./0.05 in. : 2.3 mm/1.2 mm, 2.3 mm/1.2 mm Without stand: 47.8 x 27 x 4.1 in. / 1213.4 x 684.2 x 103.8 mm, Shipping: 56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm

Weight/VESA Hole Configuration Net Weight (with stand): 61.9 lbs. / 28.1kg, Net Weight (without stand): 61.9 lbs. / 28.1 kg., Shipping: 83.8lbs. / 38.0kg, 400 x 400mm (4-hole, M6)

Operating Temperature 41-104°F / 5-40°C

Operating Humidity 20-80%

Operating Altitude 9843 ft. / 3000m

Storage Temperature -4-140°F / -20-60°C

Storage Humidity 10-90%

Storage Altitude 40,000 ft. / 12,192m

Warranty 3 years
