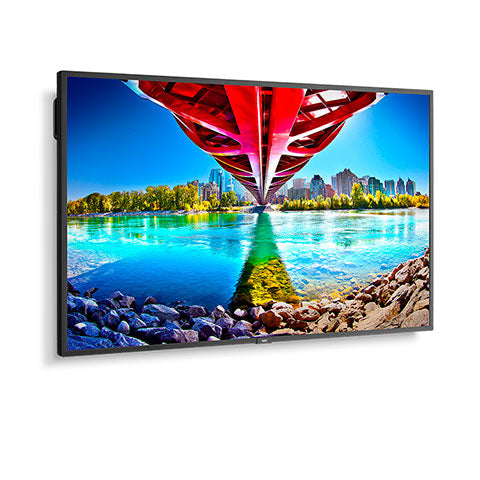

NEC 55" Ultra High Definition Professional Display with Integrated ATS

Home
NEC 55" Ultra High Definition Professional Display with Integrated ATSC/NTSC Tuner

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: ME551-AVT3

UPC: 805736075144

MFG Part: ME551-AVT3

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

allows for flexibility of installation dependent on your needs

allows for future proof expansion and NEC Mediaplayer support (Q2 2021)

allows for easy integration into control systems via LAN or RS232C

and HDR compatibilty will capture the attention of audience in almost any situation

allows for audio, video or image playback via USB

full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertia...

to allow for peace of mind and protection of your investment

Free software solution that greatly eases administration and management of larger display device installations

Panel Technology IPS

Viewable Image Size 55 "

Aspect Ratio 16:9

Native Resolution 3840x2160

Supported Resolutions DIsplayPort: V1.2 (HDCP 1.3/2.2) VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2))

Pixel Pitch 0.32 mm

Pixels Per Inch 81 @ native resolution

Backlight Type LED Direct-lit

Brightness (typical) 400 cd/m

Contrast Ratio (typical) 2≥8,000:1 (Out of the box conditions, local dimming ON)

Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (Gray to Gray) 8 ms

Refresh Rate 60Hz

Active Screen Area 47.2 x 26.8 in. / 1209.6 x 680.4mm

Orientation Landscape/Portrait

Dimming Capability Local Dimming Capable

Displayable Colors More than 1.08 billion (8-bit+FRC)

Color Temperature (Max) (°K) 10000K

Color Temperature (Min) (°K) 2600K

Gamma (Typical) Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3

Horizontal (Analog/Digital) Digital: 26.0 - 135.0kHz

Vertical Digital: 23.0 - 86.0Hz

Video Digital TMDS / DisplayPort

PC Signal Compatibility Yes

Macintosh Signal Compatibility Yes

Video Digital TMDS / DisplayPort

External Control LAN and RS232 In - Full external control capabilities

Input Terminals/Output Terminals Digital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP), Audio: 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3, External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote), Data: USB 2.0 (Media Player), Audio: 3.5mm Mini-Jack

On 120W

ECO Mode Standby <0.5W

Network Standby 0.5W

Power Consumption (max) 120W (Max Brightness), 265W (Brightness Max, SDM Max, Volume Max)

Power Savings Mode 2 W

Power Requirements 2.9A @ 100V, 1.2A @ 240V

Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.55 in./0.55 in., 0.55 in./0.55 in. : 13.9 mm/13.9 mm, 13.9 mm/13.9 mm Without stand: 48.9 x 28.1 x 2.5 in. / 1241.8 x 712.6 x 62.6 mm, Shipping: 56.3 x 36.2 x 9.8 in. / 1430.0 x 920.0 x 250.0mm

Weight/VESA Hole Configuration Net Weight (without stand): 43.7 lbs. / 19.8 kg., Shipping: 65.0 lbs. / 29.5kg, 400 x 400mm (M6 x 4-hole)

Operating Humidity 20 - 80%

Operating Altitude 9843 ft. / 3000m

Storage Temperature -4-140°F / -20-60°C

Storage Humidity 10-80%

Storage Altitude 40,000 ft. / 12,192m

ENERGYSTAR Energy Star 8.0

Warranty 3 years Advanced Exchange
