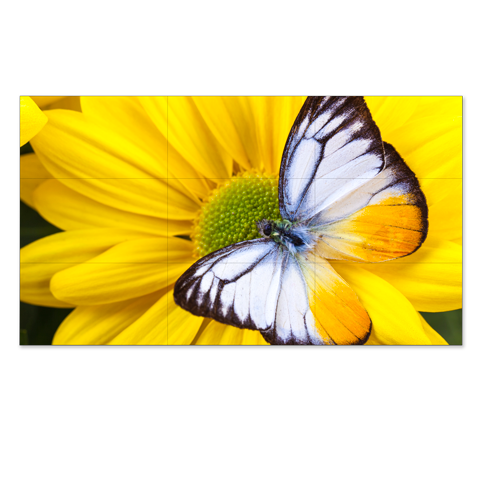

55” LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle

Home
55” LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: UN552S-TMX9P

UPC: 805736071887

MFG Part: UN552S-TMX9P

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

video wall makes configuration and installation easy

allows for full-service capabilities and 6-axis adjustment for perfect alignment

exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability

combined with full HD resolution will capture the attention of the audience

with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allo...

capabilities can support up to 4K UHD resolution

for ultimate adjustment of the imagery in the wall

of each display for gamma, intensity and RGB for consistency from display to display

, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible

Panel Technology S-IPS

Viewable Image Size 55 "

Aspect Ratio 16:9

Native Resolution 1920x1080

Pixel Pitch 0.63 mm

Pixels Per Inch 40 @ native resolution

Backlight Type LED Direct-lit

Brightness (maximum) 700 cd/m2

Contrast Ratio (typical) 1100:1 (without local dimming)

Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (Gray to Gray) 8 ms

Refresh Rate 60Hz

Active Screen Area 47.6 x 26.8 in. / 1209.63 x 680.34mm

Orientation Landscape/Portrait

Displayable Colors More than 1.07 billion

Horizontal (Analog/Digital) Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz

Video/Sync Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort, Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive

Factory Calibration RGB, White Point, Intensity, Gamma, Uniformity

Sensor Calibration (through USB) PC-less calibration with USB Sensor MDSVSENSOR3, White Copy available post self-calibration

Calibration with Software RGB, White Point, Intensity, Gamma, Corner Uniformity, Update Uniformity Correction, Update Factory Calibration

Calibration Software NEC Display Wall Calibrator

PC Signal Compatibility Yes

Macintosh Signal Compatibility Yes

Input Terminals/Output Terminals Analog: VGA 15-pin D-sub, Digital: DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D, Audio: Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio, External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote), Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered), Digital: DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS)), Audio: 3.5mm Mini-Jack, External Speaker Jack (2), External Control: LAN (100Mb)

On 165W

ECO Mode Standby <0.5W

Power Consumption (max) 255W (Brightness Max), 420W (All Functions Maxed)

Input Current 4.7A @ 100V, 1.9A @ 240V

Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.02 in./0.02 in., 0.02 in./0.02 in. : 0.44 mm/0.44 mm, 0.44 mm/0.44 mm Without stand: 47.7 x 26.8 x 3.9 in. / 1210.5 x 681.2 x 98.6 mm, Shipping: 56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm

Weight/VESA Hole Configuration Net Weight (with stand): 56.9 lbs. / 25.8kg, Shipping: 81.6 lbs. / 37.0kg, 400 x 400mm (4-hole, M6)

Operating Temperature 41-104°F / 5-40°C

Operating Humidity 20-80%

Operating Altitude 9843 ft. / 3000m

Storage Temperature -4-140°F / -20-60°C

Storage Humidity 10-90%

Storage Altitude 40,000 ft. / 12,192m

Warranty 3 years
