Built for Commercial Excellence

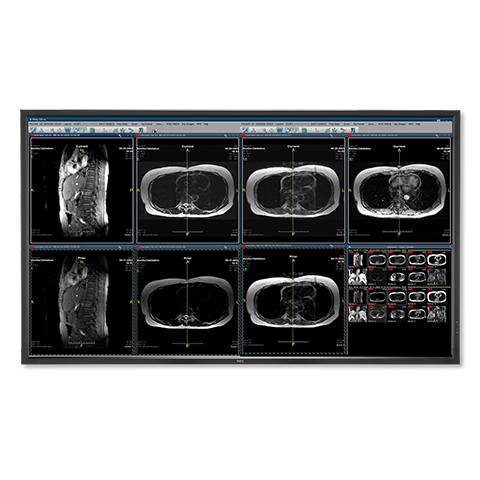

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.
Medical grade display that complies with EN/UL 60601-1 certification
DICOM Part 14 calibration out of the box
Ultra High Definition Professional Display with 24/7 runtime
Multiple Digital inputs including DP 1.2 with 4K @ 60Hz support
Multi Picture Mode allows for up to 4 simultaneous images through multiple sources on a single screen
New Spectraview Engine capabilities that allows for precise color and uniformtiy correction
Technical Specifications
Detailed technical information for this product.
Panel Technology
SPVA
Viewable Image Size
55 "
Aspect Ratio
16:9
Native Resolution
3840x2160
Pixel Pitch
0.32 mm
Pixels Per Inch
80 @ native resolution
Backlight Type
LED Edge-lit
Brightness (typical)
250 (Calibrated Brightness) cd/m2
Brightness (maximum)
400 cd/m
Contrast Ratio (typical)
24000:1
Viewing Angle (typical)
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical)
6 ms
Refresh Rate
60Hz
Active Screen Area
47.6 x 26.8 in. / 1209.6 x 680.4mm
Orientation
Landscape/Portrait
Displayable Colors
More than 1.08 billion (10-bit)
Horizontal (Analog/Digital)
Analog: 15.625/15.734/26.97./28.125/31.5-91.1 kHz
Digital: 15.0 - 91.1 KHz
Vertical
Analog: 24/25/30/50-85 Hz
Digital: 24.0 - 85.0 Hz
Sync
Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Signal Compatibility
Yes
Sync/Input Terminals
Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) Digital: DisplayPort 1.2; DVI-D (2), HDMI 1.4 (4), Audio: Audio Mini-Jack, DisplayPort Audio, HDMI Audio, External Control: RS-232C, LAN, USB Upstream/Downstream
Output Terminals
Audio: 3.5mm Mini-Jack External Control: LAN (100Mb)
On
125W
ECO Mode Standby
<0.5W
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD)
0.73 in. / 0.73 in. , 0.73 in. / 0.73 in. ; 18.5mm/18.5mm , 18.5mm/18.5mm, With stand: 49.0 x 29.3-30.1 x 10.5 in. / 1244.0 x 744.8-764.8 x 267.7mm, Without stand: 49 x 28.1 x 2.5 in. / 1244 x 714.8 x 62.9 mm, Shipping: 56.3 x 36.2 x 9.8 in. / 1430.0 x 920.0 x 250.0mm
Weight/VESA Hole Configuration
Net Weight (with stand): 54.2 lbs. / 26.6 kg, Net Weight (without stand): 72.8 lbs. / 33 kg., 300 x 300mm (M6 x 4-hole)
Operating Temperature
32-104°F / 0-40°C
Operating Humidity
20-80%
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-140°F / -20-60°C
Storage Humidity
10-90%
Storage Altitude
40,000 ft. / 12,192m
