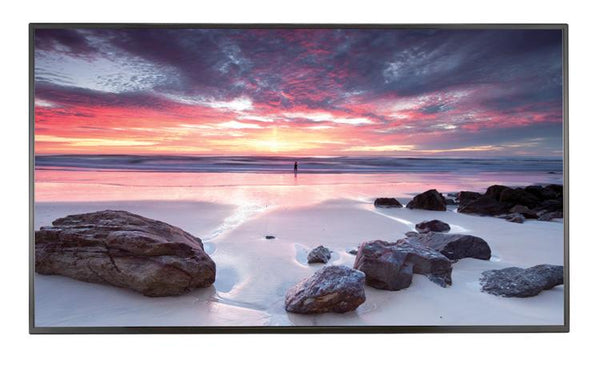

55'' class - Immersive Screen with Smart Platform Ultra HD UH5C Series

Home
55'' class - Immersive Screen with Smart Platform Ultra HD UH5C Series

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: 55UH5C

MFG Part: 55UH5C

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Ultra HD Resolution (3,840 x 2,160)

Ultra HD Large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD.

High Efficiency Video Coding

Supports HEVC-based content which has the double data compression ratio than the H.264, so network traffic can be red...

Mirroring

Content sharing is more convenient on a Wi-Fi network.

Low Power Consumption Using The M+ Panel

The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compar...

IP Streaming Protocol

Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*. * RTSP (Real-T...

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure. * HTTPS : Hypertext Transfer ...

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for r...

Quad Core SoC*

The high-performance SoC can execute several tasks at the same time and provides smooth content playback. *SoC : Syst...

WebOS 3.0

The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.

Group Manager

Content can be created, distributed and controlled by a signage without a dedicated PC or server.

Soft AP

The UH5C with Soft AP software can operate as a wireless access point for mobile devices.

PBP (Picture-By-Picture) / PIP (Picture-In-Picture)

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digi...

Screen Size 55"

Panel Technology IPS

Contrast Ratio 1,100:1

Response Time 8ms (G to G)

Dynamic Contrast Ratio 1,000,000 : 1

Brightness 500cd/m2

Native Resolution 3,840 x 2,160 (UHD)

Viewing Angle (H x V) 178°/178°

Surface Treatment Low Haze 1%

Orientation Portrait & Landscape

Lifetime (Typ.) 50,000 Hrs

Operation Hours 24 hours

Input HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output DP, External Speaker out

External Control RS232C, RJ45, IR Receiver, Pixel Sensor

Bezel Color Black

Bezel Width 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)

Monitor Dimension (W x H x D) 1,239.8 x 725.2 x 38.6 mm

Weight (Head) 16.6 kg

VESA TM Standard Mount Interface 300 x 300 mm

Carton Dimensions (W x H x D) 1,330 x 807 x 170 mm

Packed Weight 21.1 kg

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP

Operating Temperature Range 0°C to 40°C / 32°F to 104°F

Operating Humidity Range 10 % to 80 %

Power Supply 100–240V~, 50/60Hz

Power Type Built-In Power

Power Consumption (Smart Energy Saving) 80 W

Power Consumption-Typ 116 W

Safety UL / cUL / CB / TUV / KC

EMC FCC Class "A" / CE / KCC

ErP Yes (EU Only)

External Media Player Attatchable Yes (MP500/MP700)

OPS Type Compatible Yes

SuperSign-C Yes

SuperSign W-Lite Yes

Basic Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Limited Warranty 3 years
