Built for Commercial Excellence
Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

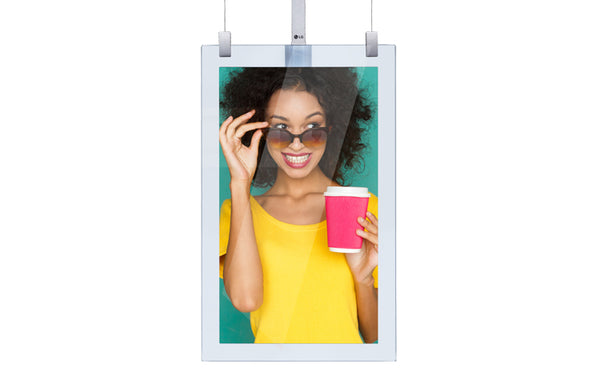

Artistic Space beyond Display LG OLED Signage
Perfect Black
Perfect Color
Perfect Viewing Screen
Perfect Design
OLED in Glass Design
Two Displays for Multiple Use
Technical Specifications
Detailed technical information for this product.
Screen Size
55"
Panel Technology
OLED
Response Time
1 ms (G to G), 8 ms (MPRT)
Brightness
400/150 cd/m2 (Average Picture Level 25%/100%)
Native Resolution
1,920 x 1,080 (FHD)
Viewing Angle (H x V)
178 x 178
Orientation
Landscape & Portrait
Lifetime (Typ.)
30,000 hrs
Operation Hours
18 Hrs / 7 days * Moving Video Only
Input
HDMI, DP, USB (2)
Output
DP, Audio
External Control
RS232C In/Out, RJ45 (LAN) In/Out, IR In
Bezel Color
Black
Bezel Width
4.1" x 3.3" x 3.3" x 3.3" | 104.4 / 83.7 / 83.7 / 84.4 mm (T/B/L/R) * Off-bezel, w/ Glass
4.3" x 3.4" x 3.8" x 3.5" | 108.3 / 87.6 / 93.3 / 88.3 mm (T/B/L/R) * On-bezel, w/ Glass
0.13" x 0.13" x 0.13" x 0.3" | 3.5 / 3.5 / 3.5 / 6.9 mm (T/B/L/R) * On-bezel, w/o Glass
Dimensions (Carton) (W x H x D)
74" x 40" x 14.3" (Pallet : 70.9" x 40" x 4.7")
1,880 x 1,015 x 363 mm (Pallet : 1,800 x 363 x 120 mm)
Weight
(Head) 62.8 lbs, 28.5 kg
(Signage Box) 7.7 lbs, 3.5 kg
Dimensions (Monitor) (W x H x D)
33.9" x 55.4" x 0.5" | (Head) 861.3 x 1,406.2 x 13 mm * w/o Hanging Acc.
165.3" x 13.9" x 2.3" | (Signage Box) 413 x 353 x 57.3 mm
Packed Weight
141.1 klbs, 64.0 kg (incl. Glass Module 1ea, Signage Box 2ea)
Yes
Internal Memory (64GB), Temperature Sensor, Embedded CMS, Fail Over, Content Sync., OSD Rotation, Lock Mode, Content Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, Control Manager, Crestron Connected1, DPM, PM Mode, Wake on LAN, HDMI-CEC2, SI Server Setting
Operating Temperature Range
32°F to 104°F / 0°C to 40°C
Operation Humidity
10 % to 80 %
Power Supply
100–240V~, 50/60Hz
Power Type
Built-in Power
Power Consumption (Typ)
309 W *8 color bar
Power Consumption (Max)
318 W *8 color bar
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes/No
External Media Player Attachable
Yes
OPS Type Compatible
No
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
Warranty
3-Year Limited Warranty
UPC
7 19192 62952 3
