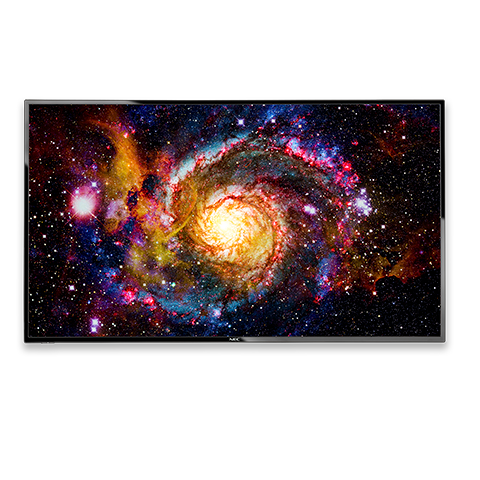

NEC E507Q NEC 50" 4K UHD Display with Integrated ATSC/NTSC Tuner EQ Series

Call for price
The 50” NEC E507Q, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model’s 4K UHD resolution and LED direct backlighting allows for higher visual acuity, reduced power consumption...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: E507Q

UPC: 805736069723

MFG Part: E507Q

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

4K UHD resolution allows for high end visual acuity

Integrated multimedia USB player makes digital signage simple

LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth

Thinner bezel improves display's aesthetics

24-Hour On/Off timer maintains power schedules

Full HD Resolution allows for excellent image quality

Video signal wake-up function allows for plug and play functionality

Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities

Built-in, low-profile 10W speakers enhance the experience with superior sound

Technical Specifications

Detailed technical information for this product.

Panel Technology VA
Viewable Image Size 50 "
Aspect Ratio 16:9
Native Resolution 3840x2160
Pixel Pitch 0.29 mm
Backlight Type LED Direct-lit
Brightness (typical) 350 cd/m
Contrast Ratio (typical) 24000:1 (without local dimming)
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz
Active Screen Area 43.1 x 24.3 in. / 1095.8 x 616.4mm
Orientation Landscape
Displayable Colors More than 1.07 billion
Horizontal (Analog/Digital) 15.0 - 134.0kHz
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Input Terminals/Output Terminals Analog: VGA 15-pin D-sub, Component, Composite (shared with Component), Digital: HDMI (3 x 2.0), Audio: HDMI Audio, Audio Mini-Jack, RCA Audio (L/R), External Control: RS-232C, LAN (one at a time), Data: USB 2.0 (Media Player), USB 2.0 (Power), Audio: SPDIF
On 97W
ECO Mode Standby <0.5W
Power Requirements 1.7A - 0.7A @ 100 - 240V
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.47 in./0.47 in., 0.47 in./0.57 in. : 11.9 mm/11.9 mm, 11.9 mm/14.4 mm Without stand: 44.2 x 25.4 x 3 in. / 1123.6 x 646.7 x 77 mm, Shipping: 1240.0 x 777.0 x168.0mm / 48.8 x 30.6 x 6.6 in.
Weight/VESA Hole Configuration Net Weight (without stand): 27.3 lbs. / 12.4 kg., Shipping: 36.6 lbs. / 16.6 kg, 4 x M6 x 17.5mm (400 x 200)
Operating Temperature 32-104°F / 0-40°C
Operating Humidity 10-80%
Operating Altitude 6562 ft. / 2000m
Storage Temperature 14 - 140°C / -10 – 60°C
Storage Humidity 5-85%
Storage Altitude 40,000 ft. / 12,192m
Warranty 3 years
