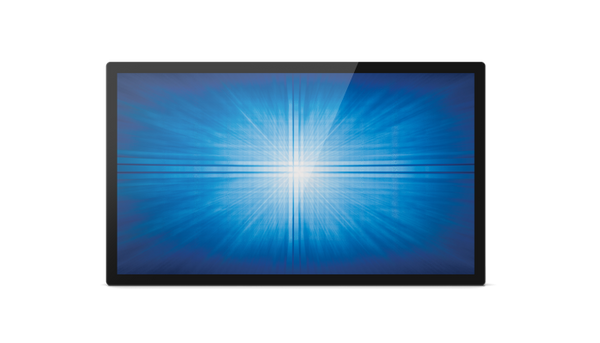

4343L Open Frame Touchscreen - E220574

Easily integrated.

TouchPro® Projected Capacitive (PCAP) units offer clear anti-friction glass that are sealed against dirt and dust to ...TouchPro® Projected Capacitive (PCAP) units offer clear anti-friction glass that are sealed against dirt and dust to simplify integration into the final enclosure. And with the capability to support touch thru glass (available upon request), the 4343L can be sealed into a solution and obtain an IP65 rating on the front side of the unit. The flush mount kit is included to enable a seamless and elegant front kiosk surface. And, as with all Elo open frame touchscreen displays, we control the design and tooling to help ensure future products will be identical in form, fit and mechanical design whenever possible helping you to minimize costly enclosure changes.

Touch ready.

Designed for touch from the start, the seamless zero-bezel 42.5-inch multi-touch display is available with our latest...Designed for touch from the start, the seamless zero-bezel 42.5-inch multi-touch display is available with our latest TouchPro PCAP advanced solution offering a lighter 12-point multi-touch screen specifically designed for large format, high-use applications. The 4343L’s TouchPro PCAP offers fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows® 7, Windows 8 and Windows 10. The 4343L touchscreen provides pure glass construction to deliver a clear, bright and long-lasting touchscreen solution.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our thr...The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. Designed and built by Elo, we use our own touchscreens, software and drivers ensuring everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).

TouchPro® - PCAP

Multi Touch (12)

16:9

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
