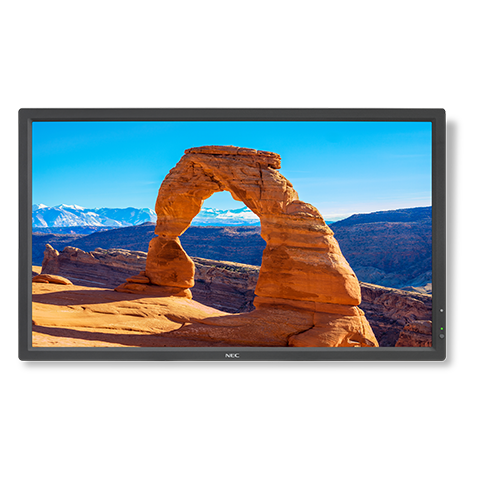

32" High-Performance LED-backlit Commercial-Grade Display

Home
32" High-Performance LED-backlit Commercial-Grade Display

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: V323-3

UPC: 805736071023

MFG Part: V323-3

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

Slimmer cabinet depth and bezel dimensions enhanced with aesthetic mechanical design

1920 x 1080 Resolution allows for incredibly clear imagery

LED backlighting technology further reduces power consumption

Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industryâ€™s first standardizat...

Full 1080p high-definition resolution provides stunning detail

Commercial-grade LCD panel and components enable extended run time

Expanded connectivity with digital loop-through

Free software solution that greatly eases administration and management of larger display device installations

Panel Technology S-IPS

Viewable Image Size 32 "

Aspect Ratio 16:9

Native Resolution 1920x1080

Pixel Pitch 0.36 mm

Backlight Type LED Edge-lit

Brightness (typical)/Brightness (maximum) 320 cd/m, 2, 450 cd/m, 2

Contrast Ratio (typical) 1300:1

Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Refresh Rate 60Hz

Active Screen Area 27.5x 15.5in. / 698.4 x 392.9mm

Orientation Landscape/Portrait

Displayable Colors More than 16.7 million

Horizontal (Analog/Digital) Analog: 15.625 / 15.734 / 31.5 - 91.1 KHz, Digital: 31.5 - 91.1KHz

Video/Sync Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort, Analog: Separate sync: TTL Level (Positive/Negative) , Sync on green: (0.3Vp-p negative), Digital: TMDS / DisplayPor

PC Signal Compatibility Yes

Macintosh Signal Compatibility Yes

Video/Sync Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort, Analog: Separate sync: TTL Level (Positive/Negative) , Sync on green: (0.3Vp-p negative), Digital: TMDS / DisplayPor

Input Terminals/Output Terminals Analog: VGA 15-pin D-sub (shared S-Video, Video, Component, RGB), Digital: DisplayPort, HDMI, DVI-D, Audio: Stereo Mini-Jack, HDMI Audio, DisplayPort Audio, External Control: RS-232C, Ethernet (RJ45), IR Remote, Digital: DVI-D, Audio: Stereo Mini-Jack, External Control: RS-232C

On 48W

ECO Mode Standby <1W

Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.9 in. / 0.9 in., 0.9 in. / 0.9 in. ; 24.0mm/24.0mm, 24.0mm/24.0mm, With stand: 29.5 x 19.6 x 9.4 in. / 750.0 x 497.1 x 240.0mm, Without stand: 29.5 x 17.5 x 2.4 in. / 750 x 444.5 x 60.8 mm, Shipping: 34.5 x 22.9 x 6.8 in. / 876.0 x 582.0 x 172.0mm

Weight/VESA Hole Configuration Net Weight (with stand): 23.8lbs. / 10.8kg, Net Weight (without stand): 20.9 lbs. / 9.5 kg., Shipping: 25.0lbs / 11.4kg, 200 x 200mm (4-hole)

Operating Temperature 41-104°F / 5-40°C

Operating Humidity 20-80%

Operating Altitude 9843 ft. / 3000m

Storage Temperature -4-140°F / -20-60°C

Storage Humidity 10-90%

Storage Altitude 40,000 ft. / 12,192m\

Warranty 3 years
