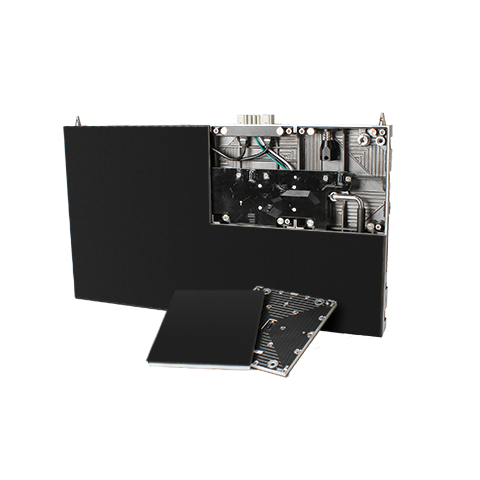

NEC LED-FA031I2 NEC 3.16mm FA-Series Indoor dvLED

Call for price
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: LED-FA031I2

MFG Part: LED-FA031I2

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

Designed with multicolor LEDs and a refresh rate of >= 2880 Hz for excellent image quality

HDR capable when used with controllers that output HDR

Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity

Built in data and power redundancy ensuring the display remains operational in the event of a single controller of po...

Read More

Front serviceable modules allowing for installation in difficult to access areas

Pixel cards are hot-swappable and can be replaced without turning the display off

Shallow depth and reduced weight allow for greater installation flexibility and also meet ADA requirements

Pixel cards are upgradeable to a finer pixel pitch, or technology improvement. Upgrade a 3.1mm display to a finer pi...

Read More

CCC

CE

ETL

FCC Class A

RoHS

Technical Specifications

Detailed technical information for this product.

Panel Technology Direct View LED
Aspect Ratio 16:9
Native Resolution 192x108
Module Resolution 192 x 108
Pixel Configuration 3-1 SMD (Black)
Pixel Pitch 3.16 mm
Brightness (maximum) 1200 cd/m2
Contrast Ratio (typical) 7000:1
Viewing Angle (typical) 80/80 horizontal / 70/70 vertical
Refresh Rate 2880 Hz
Active Screen Area 23.9 x 13.5 in. / 608 x 342 mm
Orientation Landscape
Dimming Capability 256 levels
Color Processing 16 bit
Displayable Colors 281 Trillion
Color Temperature (Max) (°K) 3000
Color Temperature (Typical) (°K) 6500
Color Temperature (Min) (°K) 9500
Gamma (Max) 4.0
Gamma (Typical) 2.8
Gamma (Min) 1.0
Lifetime 100,000 hours
External Control/Input Terminals RS232 / USB, Digital: 2x 1000BaseT RJ-45, External Control: RS232 / USB
On 28Watts
Power Consumption (max) 120 Watts
Power Consumption (min) 16 Watts
Dimensions (WxHxD) Without stand: 23.9 x 13.5 x 1.9 in. / 608 x 342 x 49 mm
Weight Net Weight (without stand): 19.4 lbs. / 8.8 kg. Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS
Operating Temperature -4° to 104°F / -20° to 40°C
Operating Humidity 10% to 80%
Storage Temperature -4° to 113°f / -20° to 45°c
Storage Humidity 10% to 85%
Environment Indoor
Warranty 3 years
