23” WUXGA Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Be

Home

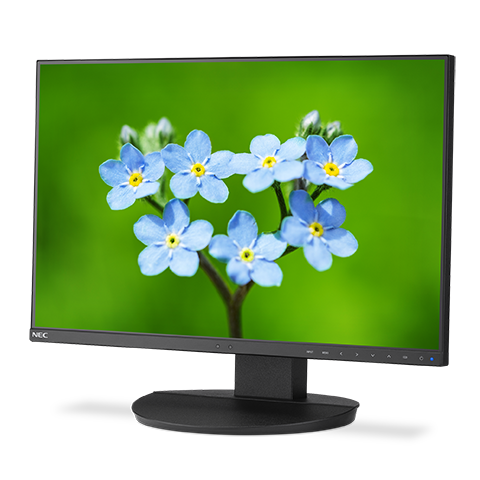

23” WUXGA Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Bezel, No Stand

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: EA231WU-H-BK

UPC: 805736071283

MFG Part: EA231WU-H-BK

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

LED backlight technology provides for industry-leading low power consumption and less hazardous materials

100mm VESA mounting pattern will work with most commercial mounting solutions

Full connectivity, including DisplayPort, HDMI, DVI-D and VGA

Touch-sensitive OSDÂ® controls are integrated into the bezel, making display adjustments easier than ever

Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness,...

Certified Low Blue Light and Flicker Free

ECO Modeâ„¢ allows you to manually adjust the displayâ€™s brightness to your liking, saving power and reducing your e...

dual direction pivot and the image flip feature allow users to arrange the thinnest inactive areas together for nearl...

Free software solution that greatly eases administration and management of larger display device installations

Compatible with

calibration software and the

calibration kit.

Panel Technology IPS

Viewable Image Size 22.5 "

Aspect Ratio 16:10

Native Resolution 1920x1200

Pixel Pitch 0.25 mm

Pixels Per Inch 100 @ native resolutions

Backlight Type W-LED

Brightness (typical) 250 cd/m2

Contrast Ratio (typical) 1000:1

Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (typical) 5 ms

Active Screen Area 19.2 x 11.7 in. / 488.2 x 297.2 mm

Displayable Colors/Color Gamut More than 16.7 million, Adobe RGB Coverage/Size: 72.9% / 75.5%, NTSC Coverage/Size: 69.5% / 72.1%, sRGB Coverage/Size: 94.3% / 101.8%

Horizontal (Analog/Digital) 31.5-75 KHz

Vertical 50-60 Hz

Input Terminals DisplayPort, HDMI, DVI-D, VGA 15-pin D-sub Analog: VGA Digital: DisplayPort, HDMI, DVI-D Audio: DisplayPort, HDMI Connectors: DisplayPort, HDMI, DVI-D, VGA 15-pin D-sub

Output Terminals Audio: 3.5mm

On 15W

Power Savings Mode 0.29 W

Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) 0.8 / 0.8 / 0.8 / 15.8 mm, With stand: 19.6 x 12.6 x 1.8 in. / 498.9 x 319.7 x 45.6 mm, Without stand: 19.6 x 12.6 x 1.8 in. / 498.9 x 319.7 x 45.6 mm, Shipping: 25.79 x 16.54 x 7.87 in. / 655.0 x 420.0 x 200mm

Weight/VESA Hole Configuration Net Weight (with stand): 7.5 lbs. / 3.4 kg, Net Weight (without stand): 7.5 lbs. / 3.4 kg., Shipping: 12.6 lbs. / 5.7 kg, 100 x 100mm

Operating Temperature 41-95°F / 5-35°C

Operating Humidity 20-80%

Operating Altitude 16404 ft. / 5000m

Storage Temperature 14-140°F / -10-60°C

Storage Humidity 10-85%

Storage Altitude 40,000 ft. / 12,192m

ENERGYSTAR 7.0

RoHS Yes

TCO 7.0

Warranty 3 years

23” WUXGA Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Bezel, No Stand

Built for Commercial Excellence

Technical Specifications
