220" FE Series 3 UHD LED kit
220" FE Series 3 UHD LED kit
220" FE Series 3 UHD LED kit
220" FE Series 3 UHD LED kit
NEC

220" FE Series 3 UHD LED kit

Call for price

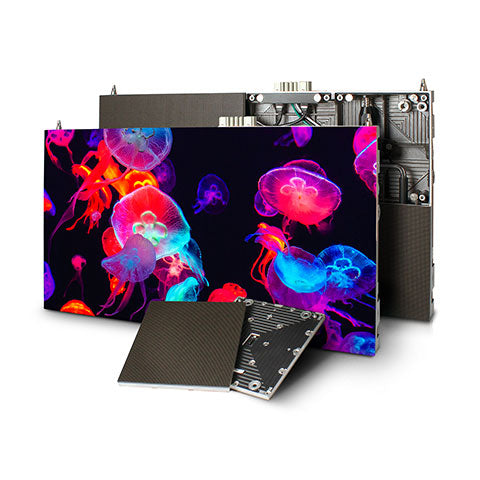

The NEC FE Series 3 provides uncompromising LED imaging in a power-efficient, cost effective package. This 220" UHD kit is built with NEC's 1.26mm LED-FE012i3 module designed to deliver impressive content visualization and is ideal for viewing from 3 to...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: LED-FE012I3-220

UPC: 805736079166

MFG Part: LED-FE012I3-220

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

220” diagonal screen size

UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz

Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting...

Read More

Front serviceable modules allowing for installation in difficult to access areas

Pixel cards are hot-swappable and can be replaced without turning the display off

Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requir...

Read More

The FE Series 3 is designed with innovative Multi-Color Flip Chip SMDs for excellent image quality and unmatched powe...

Read More

Please contact

or your local AV dealer for information on pricing including installation.

CCC

CE

ETL

FCC Class B

RoHS

Technical Specifications

Detailed technical information for this product.

Panel Technology Direct View LED
Viewable Image Size 220 "
Aspect Ratio 16:9
Screen Resolution 3840x2160
Module Resolution 480 x 270
Pixel Configuration 3 in 1 Flip Chip SMD
Pixel Pitch 1.26 mm
Brightness (typical) 700 cd/m2
Brightness (maximum) 770 cd/m
Contrast Ratio (typical) 28000:1
Viewing Angle (typical) 85/85 horizontal / 80/80 vertical
Refresh Rate Up to 3840 Hz
Active Screen Area 191.2 x 108 in. / 4864 x 2736 mm
Orientation Landscape
Dimming Capability 256 levels
Color Processing Up to 16 bit
Displayable Colors 281 Trillion
Color Temperature (Max) (°K) 9500
Color Temperature (Typical) (°K) 6500
Color Temperature (Min) (°K) 3000
Gamma (Max) 4.0
Gamma (Typical) 2.8
Gamma (Min) 1.0
Lifetime 100,000 hours
External Control/Input Terminals 1 x GenLock; 1 x LAN, Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI, External Control: RS232 / USB
On 1056Watts
Power Consumption (max) 1824 Watts
Power Consumption (min) 720 Watts
Dimensions (WxHxD) Without stand: 192 x 111.9 x 3.1 in. / 4876 x 2843.5 x 78 mm
Weight Net Weight (without stand): 1453.3 lbs. / 659.2 kg. Shipping: 2299.42 lbs. / 1043 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class B RoHS
Operating Temperature -4° to 104°F / -20° to 40°C
Operating Humidity 10% to 80%
Storage Temperature -4° to 113°F / -20° to 45°C
Storage Humidity 10% to 85%
Environment Indoor
Warranty 3 years
