Built for Commercial Excellence
Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

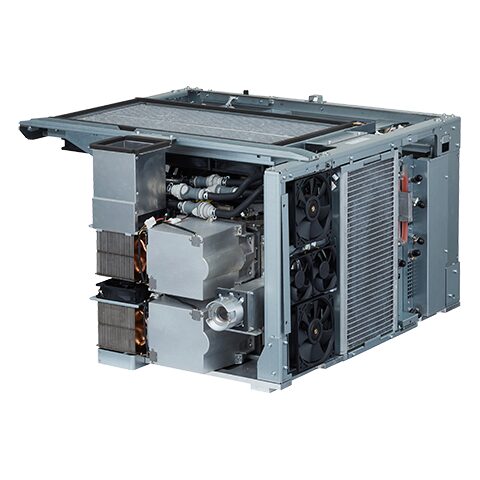

20,000 lumen RB laser module
Approximately 30,000* hours of expected usage (depends on environmental conditions)
Auto brightness control maintains constant brightness by adjusting the laser power as it ages
Technical Specifications
Detailed technical information for this product.
Native Resolution
x
Lifetime
2 years / 50,000* hours
Power Requirements
220 - 240V AC, 50/60Hz Single Phase for Light source
Power Supply Voltage
200 - 240V AC, 50/60Hz Single Phase
Dimensions (WxHxD)
Product: 27.4 x 52.6 x 20.1 in. (697 x 1337 x 510mm) Shipping: 36.5 x 62.6 x 35.0 in. (926 x 1590 x 888 mm)
Weight
Net Weight: 189.6 lbs. / 86 kg (Excluding lens andlaser module) Shipping: 456 lbs. (207 kg)
Operating Temperature
50-96°F / 10-35°C
Operating Humidity
10 to 85% Humidity (Non-Condensing)
Operating Altitude
0 to 3000 m (9,800 ft)
Storage Temperature
14-122°F / -10 50°C
Storage Humidity
10% - 85% (non-condensing)
Storage Altitude
0-12,000m / 0-39,370ft (above sea level)
Warranty
Registered owners receive a 2-year parts and labor warranty
Light Output(Lumens)
20,000 Lumens
Light Source Life
30,000 hours
Regulations
US: UL60950-1 (2nd)/ FCC Part15 Class A (Marking: UL) / 'CAN/CSA C22.2, ICES-003 Issue6 ClassA / Latin America: EN60950-1/EN55022 Class A,EN55024, EN61000-3-2/-
3-3/-3-11/-3-12 (Marking CE) / Laser Safety US: FDA(21 CFR 1040.10 and 1040.11): RG3according to Laser Notice 50 / Laser Safety Others: IEC60825-1 2014 : Class1, IEC62471-5 2015 : RG3
