NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)
NEC

NEC LED-FE019I2-165IN NEC 1.9mm 165" FE-Series HD LED Kit (Includes Installation)

Call for price
The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today’s demanding applications. This 165" Full HD kit is built with NEC’s 1.90mm LED-FE019i2 module designed to...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: LED-FE019I2-165IN

UPC: 805736072266

MFG Part: LED-FE019I2-165IN

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

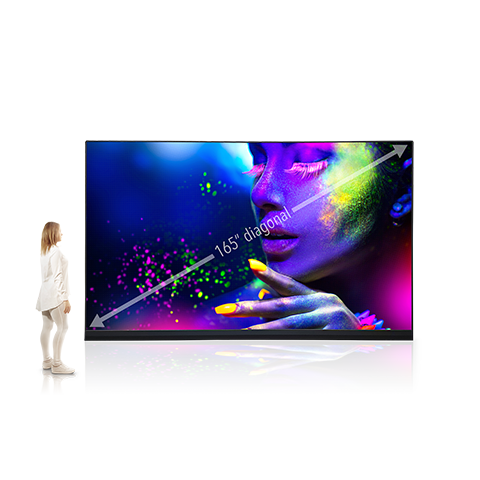

165” diagonal screen size

Full HD (1920x1080) resolution with a refresh rate of >= 2880 Hz

Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting...

Read More

Front serviceable modules allowing for installation in difficult to access areas

Pixel cards are hot-swappable and can be replaced without turning the display off

Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requir...

Read More

Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity

Standard installation included.

CCC

CE

ETL

FCC Class A

RoHS

Technical Specifications

Detailed technical information for this product.

Panel Technology Direct View LED
Viewable Image Size 165 in.
Aspect Ratio 16:9
Native Resolution 1920x1080
Module Resolution 320 x 180
Pixel Configuration 3-1 SMD (Black)
Pixel Pitch 1.9 mm
Brightness (typical) 700 cd/m2
Brightness (maximum) 770 cd/m2
Contrast Ratio (typical) 4000:1
Viewing Angle (typical) 80/80 horizontal / 80/80 vertical
Refresh Rate 2880 Hz
Active Screen Area 143.4 x 81 in. / 3648 x 2052 mm
Orientation Landscape
Dimming Capability 256 levels
Color Processing Up to 16 bit
Displayable Colors 281 Trillion
Color Temperature (Max) (°K) 3000
Color Temperature (Typical) (°K) 6500
Color Temperature (Min) (°K) 9500
Gamma (Max) 4.0
Gamma (Typical) 2.8
Gamma (Min) 1.0
Lifetime 100,000 hours
External Control/Input Terminals 1 x GenLock; 1 x LAN, Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI, External Control: RS232 / USB
On 2052Watts
Power Consumption (max) 4500 Watts
Power Consumption (min) 1008 Watts
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) in./ in., in./ in. : mm/ mm, mm/ mm Without stand: 143.4 x 85.5 x 3.2 in. / 3648 x 2172 x 81 mm
Weight Net Weight (without stand): 698.4 lbs. / 316.8 kg. Shipping: 1594 lbs / 723 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS
Operating Temperature -4° to 104°F / -20° to 40°C
Operating Humidity 10% to 80%
Storage Temperature -4° to 113°f / -20° to 45°c
Storage Humidity 10% to 85%
Environment Indoor
Warranty 2 years
