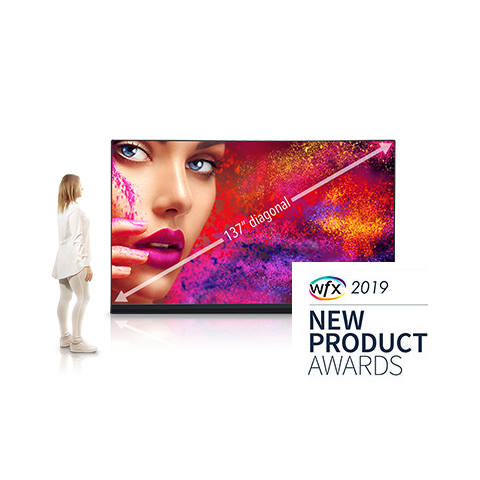

NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included
NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included
NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included
NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included
NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included
NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included
NEC

NEC LED-FA015I2-137 NEC 1.5mm 137" Full HD LED kit indoor LED with all components included

Call for price
The NEC direct view indoor LED FA Series provides crystal clear images for the ultimate visual experience and are the ideal solutions for today’s demanding applications. This 137" Full HD kit is built with NEC’s 1.58mm LED-FA015i2 module designed for...
Request a Quote
100% Satisfaction
Guaranteed
Quick & Easy
Returns Policy
Always Get
Our Best Price

SKU: LED-FA015I2-137

UPC: 805736071603

MFG Part: LED-FA015I2-137

Technical Specifications

Free shipping on orders over $500.

30-day return policy for unopened items.

Contact us for warranty claims and support.

Proudly partnered with:

Built for Commercial Excellence

Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.

137” diagonal screen size

Full HD (1920x1080) resolution with a refresh rate of >= 2880 Hz

Kit includes everything needed for an LED installation including the LED modules, power bar, dual controllers, mounti...

Read More

Built in data and power redundancy ensuring the display remains operational in the event of a single controller of po...

Read More

Front serviceable modules allowing for installation in difficult to access areas

Pixel cards are hot-swappable and can be replaced without turning the display off

Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requir...

Read More

Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity

Please contact

or your local AV dealer for information on pricing including installation.

CCC

CE

ETL

FCC Class A

RoHS

Technical Specifications

Detailed technical information for this product.

Panel Technology Direct View LED
Viewable Image Size 137 in.
Aspect Ratio 16:9
Native Resolution 1920x1080
Module Resolution 384 x 216
Pixel Configuration 3-1 SMD (Black)
Pixel Pitch 1.58 mm
Brightness (maximum) 800 cd/m2
Contrast Ratio (typical) 5000:1
Viewing Angle (typical) 85/85 horizontal / 85/85 vertical
Refresh Rate 2880 Hz
Active Screen Area 119.5 x 67.5 in. / 3040 x 1710 mm
Orientation Landscape
Dimming Capability 256 levels
Color Processing Up to 16 bit
Displayable Colors 281 Trillion
Color Temperature (Max) (°K) 3000
Color Temperature (Typical) (°K) 6500
Color Temperature (Min) (°K) 9500
Gamma (Max) 4.0
Gamma (Typical) 2.8
Gamma (Min) 1.0
Lifetime 100,000 hours
External Control/Input Terminals 1 x GenLock; 1 x LAN, Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI, External Control: RS232 / USB
On 1425Watts
Power Consumption (max) 3125 Watts
Power Consumption (min) 700 Watts
Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) in./ in., in./ in. : mm/ mm, mm/ mm Without stand: 119.5 x 72 x 3.2 in. / 3040 x 1830 x 81 mm
Weight Net Weight (without stand): 485 lbs. / 220 kg. Shipping: 1193 lbs / 541 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS
Operating Temperature -4° to 104°F / -20° to 40°C
Operating Humidity 10% to 80%
Storage Temperature -4° to 113°F / -20° to 45°C
Storage Humidity 10% to 85%
Environment Indoor
Warranty 3 years
