Built for Commercial Excellence
Not just a monitor; a dedicated commercial video wall component engineered for flawless, long-term performance.
Lead Smarter Meetings with Increased Engagement
Vivid Color Expression Powered by HDR10

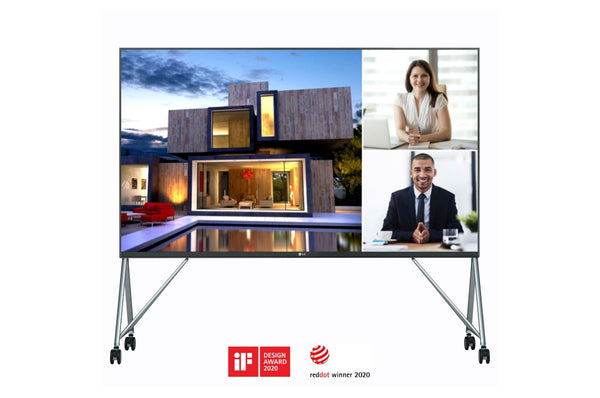

130" Large Screen with No Bezel
Immersive Surface Sound
Installation Options for Various Environments
Easy Remote Control Support
Front Serviceability
Auto Configuration
High Performance SoC with webOS
Compatibility with AV Control Systems
Compatibility with LG Software Solutions
SuperSign Solution® Signage365Care
Technical Specifications
Detailed technical information for this product.
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.50
Screen Resolution (WxH)
1,920x1,080
Screen Dimensions (WxH, mm)
2,880x1,620x128.5
Screen Weight (kg)
162.1
No. of Modules per Unit Case (WxH)
4x3
Unit Case Resolution (WxH)
640x360
Unit Case Dimensions (W x H x D, mm)
960x540x128.5
Unit Case Surface Area (m²)
0.518
Weight per Unit Case (kg/unit)
Master: 20.85, Auxiliary: 19.24
Weight per Square Meter (kg/㎡)
37.6
Physical Pixel Density (pixels/m²)
444,444
Flatness of Unit Case (mm)
±0.2
Unit Case Material
Front : Die Casting Aluminum, Rear : PC+ABS
Service Access
Front and Rear
Min. Brightness (After Calibration)
500 cd/㎡
Color Temperature
6,500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
16 (HDR10)
Power Consumption (W/unit, Avg.)
1,765
Power Consumption (W/unit, Max.)
3,530
Power Consumption (W/㎡, Max.)
760
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half brightness, hrs)1
100,000
Operating Temperature
0℃ to 40℃
Operating Humidity
10-80% RH
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class A / CE / KC
Environment
RoHS
Video Inputs
HDMI In(3), DP In, USB
Control
RJ45 In, RS232C In/out
Special Features
Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected2)
