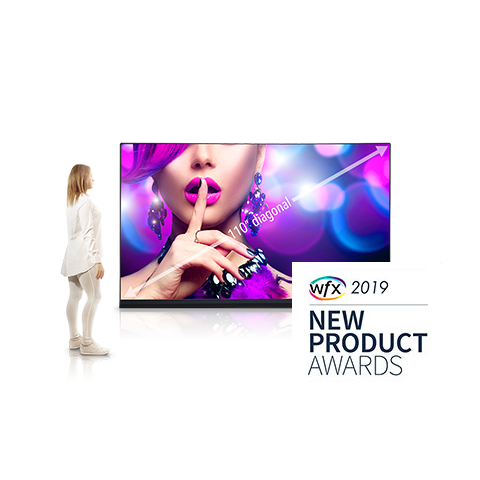

NEC LED-FA012I2-110 NEC 1.2mm 110" Full HD LED kit indoor LED with all

Home
NEC LED-FA012I2-110 NEC 1.2mm 110" Full HD LED kit indoor LED with all components included

Request a Quote

100% Satisfaction
Guaranteed

Quick & Easy
Returns Policy

Always Get
Our Best Price

SKU: LED-FA012I2-110

UPC: 805736071481

MFG Part: LED-FA012I2-110

Free shipping on orders over $500.

30-day return policy for unopened items.

Proudly partnered with:

110” diagonal screen size

Full HD (1920x1080) resolution with a refresh rate of >= 2880 Hz

Kit includes everything needed for an LED installation including the LED modules, power bar, dual controllers, mounti...

Built in data and power redundancy ensuring the display remains operational in the event of a single controller of po...

Front serviceable modules allowing for installation in difficult to access areas

Pixel cards are hot-swappable and can be replaced without turning the display off

Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requir...

Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity

Please contact

or your local AV dealer for information on pricing including installation.

CCC

ETL

FCC Class A

RoHS

Panel Technology Direct View LED

Viewable Image Size 110 in.

Aspect Ratio 16:9

Native Resolution 1920x1080

Module Resolution 480 x 270

Pixel Configuration 3-1 SMD (Black)

Pixel Pitch 1.26 mm

Brightness (maximum) 800 cd/m2

Contrast Ratio (typical) 5000:1

Viewing Angle (typical) 85/85 horizontal / 85/85 vertical

Refresh Rate 2880 Hz

Active Screen Area 95.6 x 54 in. / 2432 x 1368 mm

Orientation Landscape

Dimming Capability 256 levels

Color Processing Up to 16 bit

Displayable Colors 281 Trillion

Color Temperature (Max) (°K) 3000

Color Temperature (Typical) (°K) 6500

Color Temperature (Min) (°K) 9500

Gamma (Max) 4.0

Gamma (Typical) 2.8

Gamma (Min) 1.0

Lifetime 100,000 hours

External Control/Input Terminals 1 x GenLock; 1 x LAN, Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI, External Control: RS232 / USB

On 912Watts

Power Consumption (max) 2000 Watts

Power Consumption (min) 448 Watts

Bezel Width (Left/Right, Top/Bottom)/Dimensions (WxHxD) in./ in., in./ in. : mm/ mm, mm/ mm Without stand: 95.6 x 58.6 x 3.2 in. / 2432 x 1488 x 81 mm

Weight Net Weight (without stand): 310.4 lbs. / 140.8 kg. Shipping: 802 lbs / 364 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS

Operating Temperature -4° to 104°F / -20° to 40°C

Operating Humidity 10% to 80%

Storage Temperature -4° to 113°F / -20° to 45°C

Storage Humidity 10% to 85%

Environment Indoor

Warranty 3 years
